L322 Range Rover Service Procedures
ENGINE - V8
REPAIRS 12-2-41

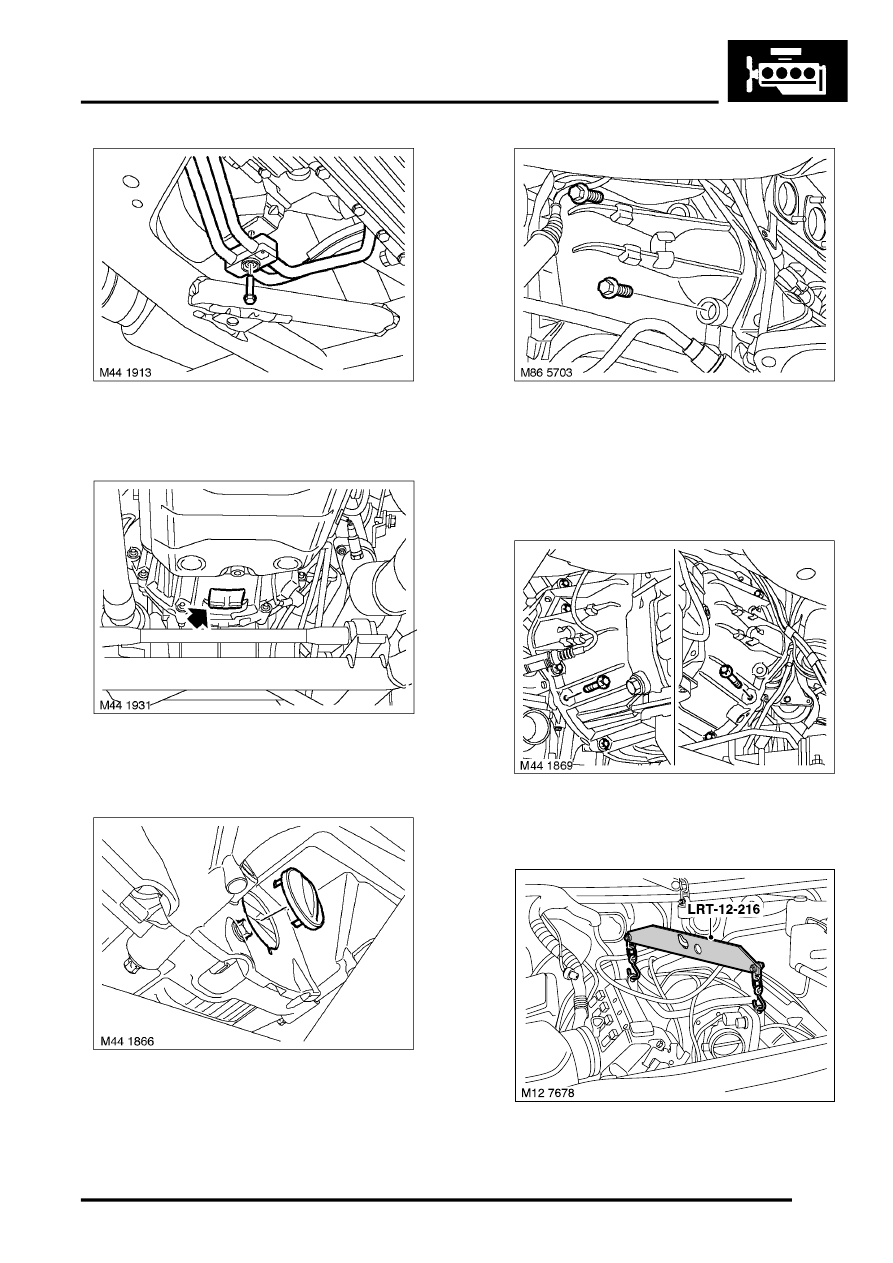

70. Remove bolt securing transmission cooler
pipes and release cooler pipes from bracket.
71. Remove grommet from bottom of bell housing
to gain access to torque converter.
72. Remove grommet from bell housing to gain
access to torque converter securing bolts.
73. Rotate crankshaft for access and remove 4
bolts securing torque converter to drive plate.
74. Position torque converter clear of drive plate.
75. Remove 2 bolts securing starter motor and
release starter motor.
NOTE: Starter motor remains captive to
engine.
76. Support gearbox.
77. Remove 8 Torx bolts securing gearbox to
engine.
78. Fit LRT-12-216 to engine lifting eyes.
