L322 Range Rover Service Procedures
FUEL DELIVERY SYSTEM - V8
19-2-12 REPAIRS

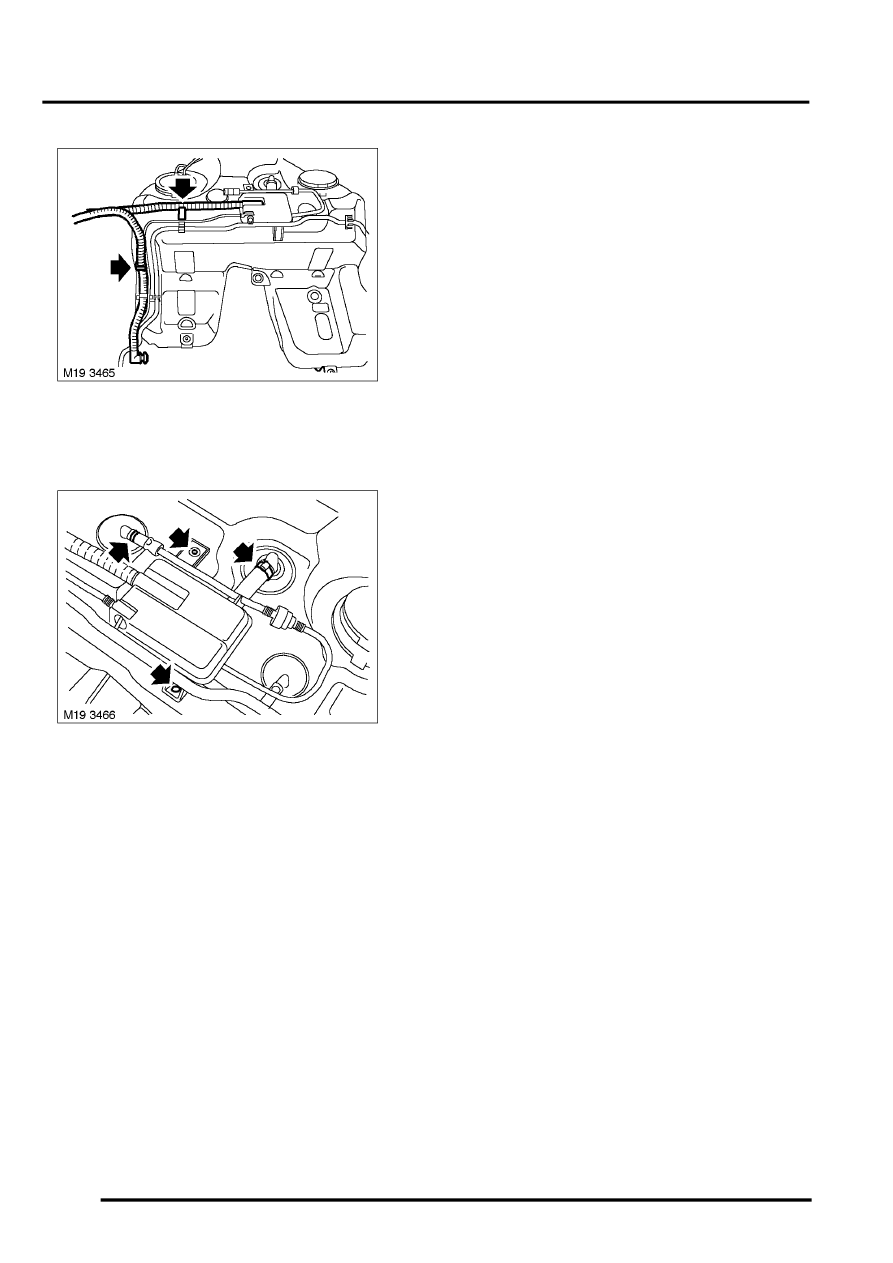

23. Release fuel tank breather hose and charcoal
canister vent pipe from securing clips on fuel
tank.
24. Release 2 clips and disconnect 2 hoses from
fuel tank. Remove 2 scrivets and remove
vapour separator.
25. Remove charcoal canister to charcoal canister
purge solenoid feed pipe from fuel tank.
26. Remove 4 scrivets securing straps to fuel tank.
Collect straps.
Refit
1. Position straps to fuel tank and secure with
scrivets.
2. Fit charcoal canister to charcoal canister purge
solenoid feed pipe to fuel tank.
3. Fit vapour separator to fuel tank and secure
with 2 scrivets, connect 2 hoses to fuel tank and
secure with clips.
4. Fit fuel tank breather pipes and charcoal
canister vent pipes to clip on fuel tank filler
neck.
5. Position tank assembly and breather pipes to
vehicle.
6. With assistance, fit bolts securing fuel tank to
body and tighten to 45 Nm (33 lbf.ft).
NOTE: Pass vent and breather hoses through
body while fitting tank.
7. Connect fuel hoses to fuel filter.
8. Position fuel filter to mounting brackets and
secure with screws.
9. Fit fuel tank shields, but do not fit nuts and
bolts.
10. Connect breather hose to filler neck, fit and
secure clip.
11. Position fuel tank vent pipe to filler neck.
12. Connect fuel tank filler hose to fuel tank filler
neck.
13. Tighten bolts securing subframe to body to 165
Nm (129 lbf.ft).
14. Fit charcoal canister, tighten 2 bolts and
connect 3 pipes to charcoal canister.
15. Fit bolts and nuts securing fuel tank shields and
tighten to 25 Nm (18 lbf.ft).
16. Fit fuel tank breather hose to fuel tank filler neck
and secure with clip.
17. Fit fuel tank breather pipes and charcoal
canister vent pipes to clip on fuel tank filler
neck.
18. Fit securing clip to fuel tank breather hose and
charcoal canister vent pipe.
19. Fit RH rear wheel arch liner.
Liner - rear wheel arch - single.
20. Insert handbrake cables through body.
21. Fit rear propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
22. Fit handbrake cable retaining clip.
23. Fit handbrake cables to compensator.
24. Fit cable retaining clip to handbrake
compensator.
25. Fit centre console.
26. Connect multiplug to fuel pump.
27. Fit RH fuel tank access cover and secure with
4 nuts.
28. Fill fuel tank with extracted fuel.
29. Connect battery earth lead.
