INTERIOR FITTINGS

REPAIRS 76-3-29

43. Fit lower 'A' post finisher.

 +

 INTERIOR FITTINGS, REPAIRS,

Trim finisher - 'A' post - lower.

44. Fit drivers footrest.

 +

 INTERIOR FITTINGS, REPAIRS,

Foot rest finisher - LHD.

45. Fit and secure ducts to heater assembly.
46. Fit centre console closing panel.

 +

 INTERIOR FITTINGS, REPAIRS,

Closing panel - centre console.

47. Fit handbrake lever assembly.

 +

 BRAKES, REPAIRS, Lever assembly

- handbrake.

48. Fit air suspension switch panel.

 +

 INTERIOR FITTINGS, REPAIRS,

Switch panel - air suspension.

49. Fit heater control panel.

 +

 HEATING AND VENTILATION,

REPAIRS, Controls - heater (ECU).

50. Fit front seats.

 +

 SEATS, REPAIRS, Front seat.

51. Fit air intake plenum.

 +

 HEATING AND VENTILATION,

REPAIRS, Plenum - air intake.

52. Recharge A/C system.

 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

53. Refill cooling system.

 +

 COOLING SYSTEM - Td6,

ADJUSTMENT, Coolant - drain and refill.

54. Connect battery earth lead.

Closing panel - passenger side

$% 76.46.27

Remove

1. Remove closing panel from passenger side of

the centre console.


 +

 INTERIOR FITTINGS, REPAIRS,

Closing panel - centre console.

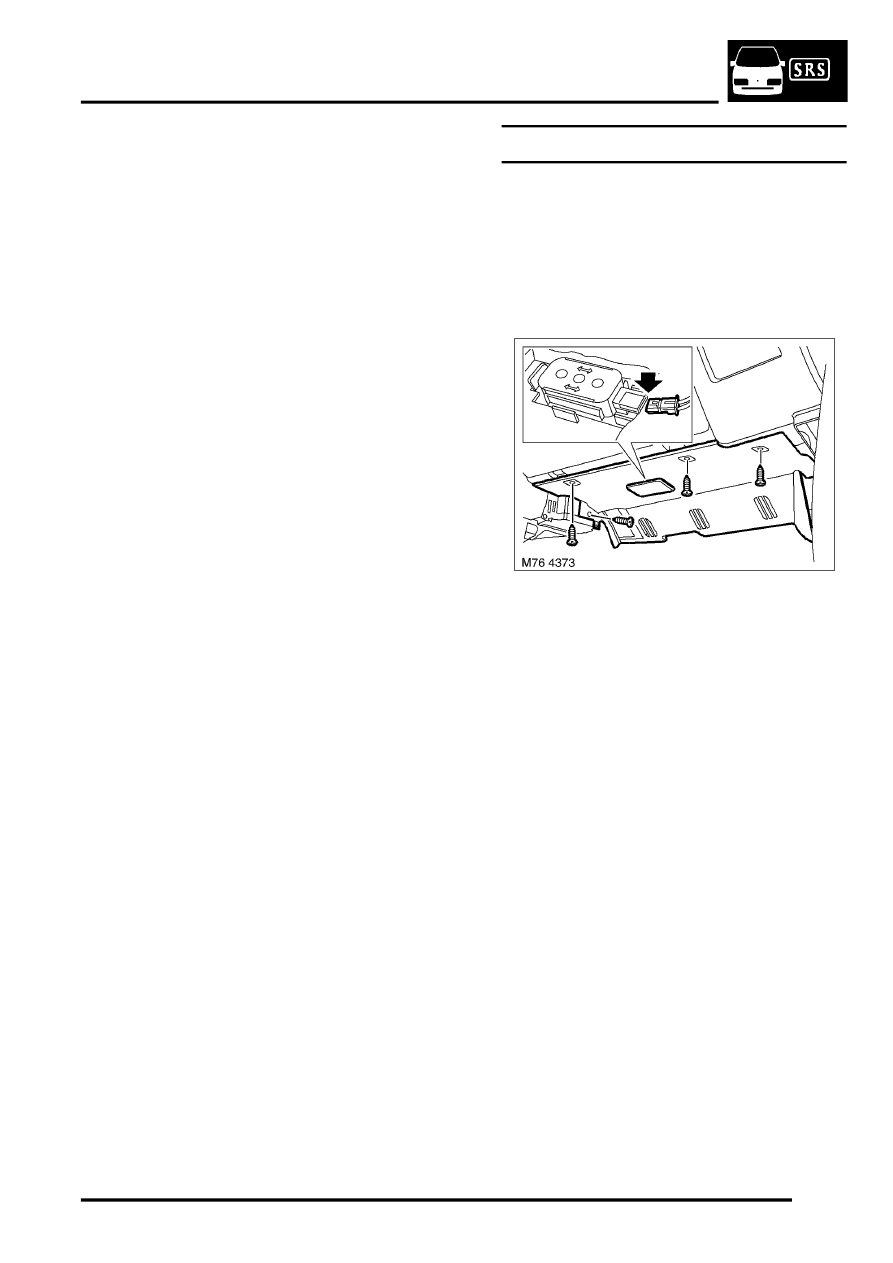

2. Remove 4 screws securing closing panel.
3. Disconnect multiplug from closing panel lamp

assembly.

4. Remove passenger side footwell closing panel.
5. Release lamp assembly from closing panel.

Refit

1. Fit lamp assembly to closing panel.
2. Connect multiplug to closing panel lamp

assembly.

3. Fit closing panel and secure with screws.
4. Fit centre console closing panel.

 +

 INTERIOR FITTINGS, REPAIRS,

Closing panel - centre console.
