L322 Range Rover Service Procedures
INTERIOR FITTINGS
REPAIRS 76-3-23

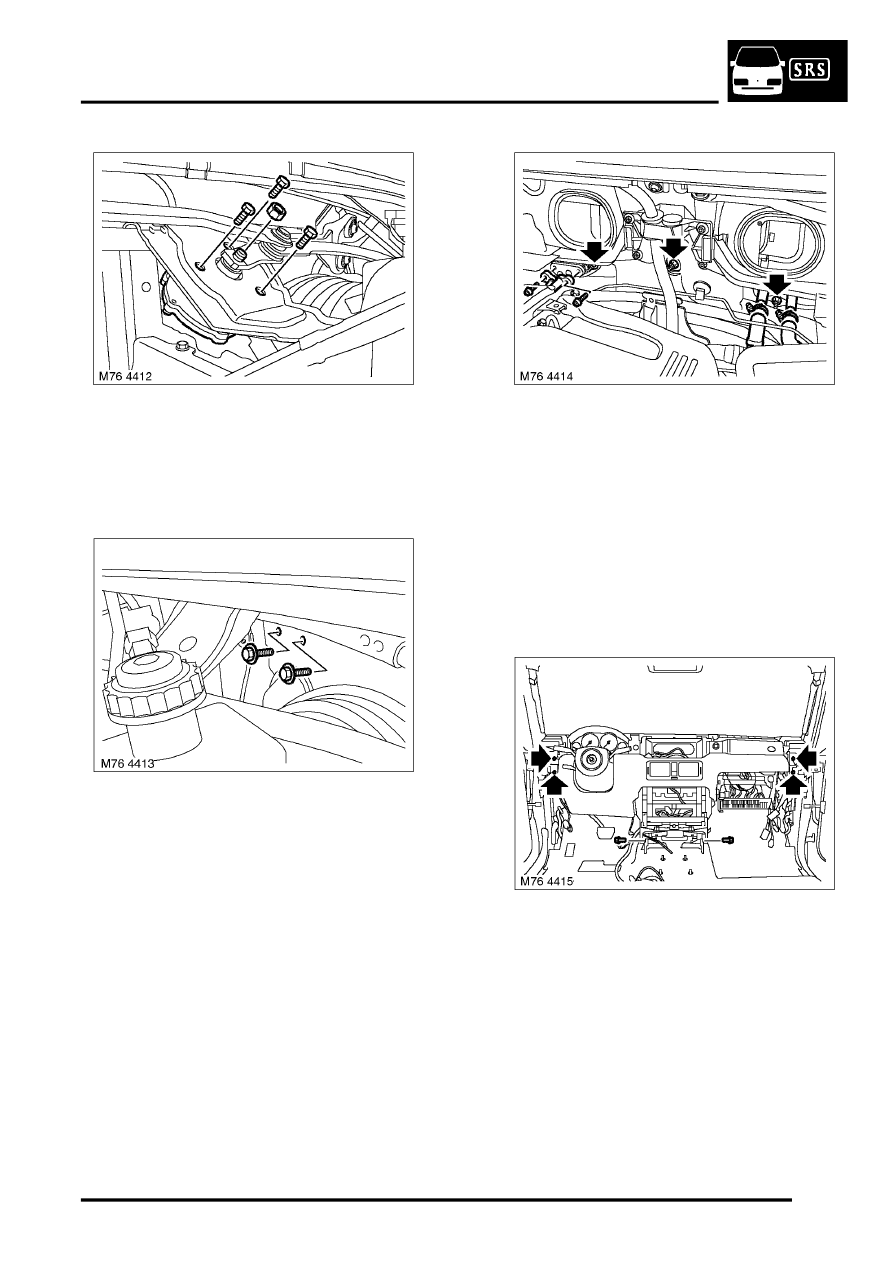

23. Noting fitted position, remove nut and
disconnect arm from wiper motor.
24. Remove 3 bolts securing wiper motor to
mounting bracket, collect motor and move
aside for access.
25. Remove 2 bolts securing fascia to bulkhead.
26. Remove 2 Allen bolts securing A/C pipes to
bulkhead, disconnect pipes and discard 'O'
rings.
CAUTION: Immediately cap all A/C pipes to
prevent ingress of dirt and moisture into the
system.
27. Position container to collect coolant.
28. Release clips and disconnect coolant hoses
from heater matrix at bulkhead.
29. Remove 3 nuts securing heater assembly to
bulkhead.
30. Remove 4 nuts and 2 bolts securing fascia
assembly to body.
31. Cover fascia lower brackets to protect carpet
from damage.
