L322 Range Rover Service Procedures
INTERIOR FITTINGS
REPAIRS 76-3-25

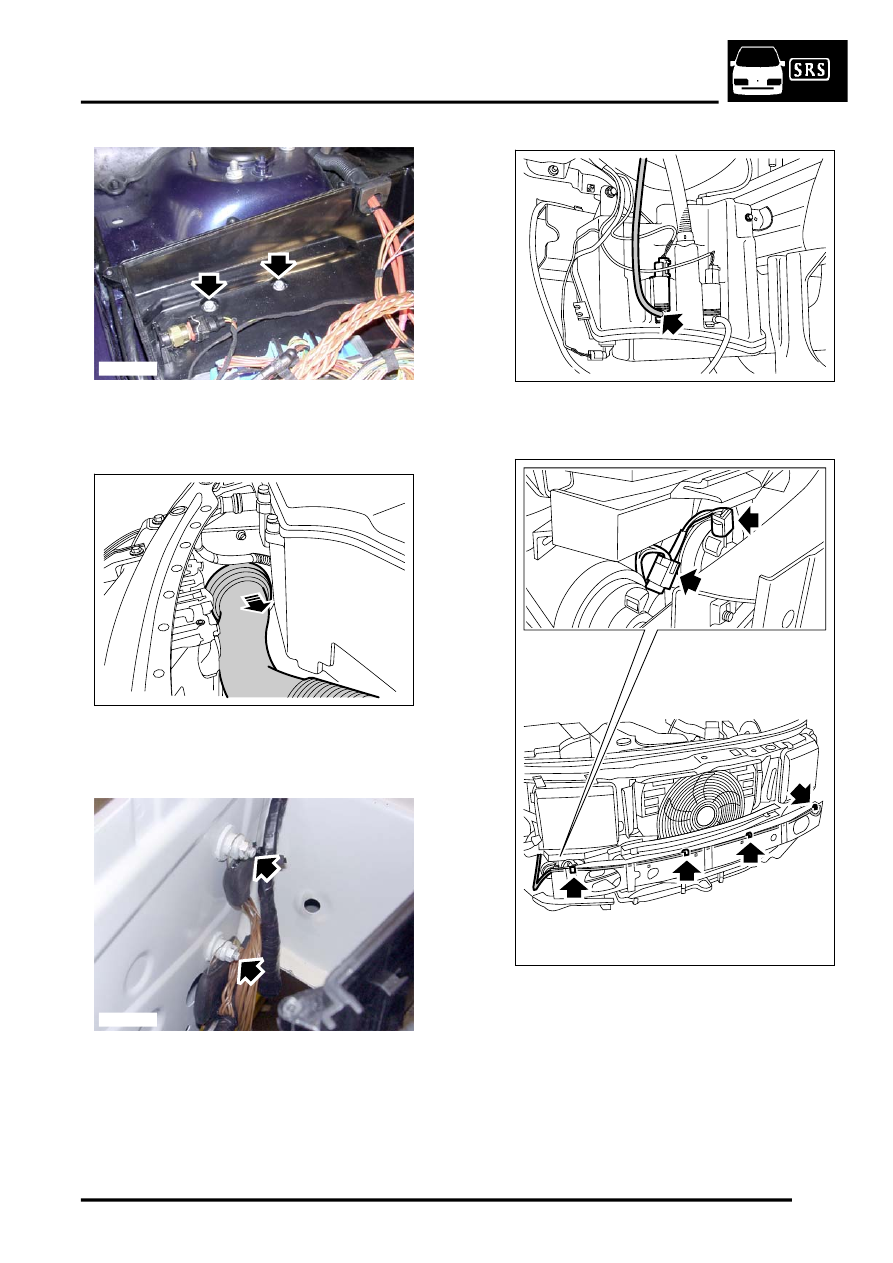

44. Remove 2 bolts securing 'E' box to suspension
turret, move aside for access.
45. Release air intake duct from inner wing and
remove.
46. Remove nuts and disconnect harness earth
headers.
47. Remove front bumper.
48. Disconnect hose from rear washer pump.
49. Release 4 cable ties securing washer hose to
armature and move hose aside.
50. Disconnect horn multiplugs.
51. Remove indicator lamp.
M76 4421
M76 4422
M76 4423
M76 4424
M82 0751
