INTERIOR FITTINGS

76-3-16 REPAIRS

Finisher - upper - passenger's side

$% 76.46.13

Remove

1. Remove 'A' post upper trim finisher.

 +

 INTERIOR FITTINGS, REPAIRS,

Trim finisher - 'A' post - upper.

2. Remove fascia end closing panel.

 +

 INTERIOR FITTINGS, REPAIRS,

Closing panel - fascia end.

3. Remove face level air vent.

 +

 HEATING AND VENTILATION,

REPAIRS, Fresh air vent - face level.

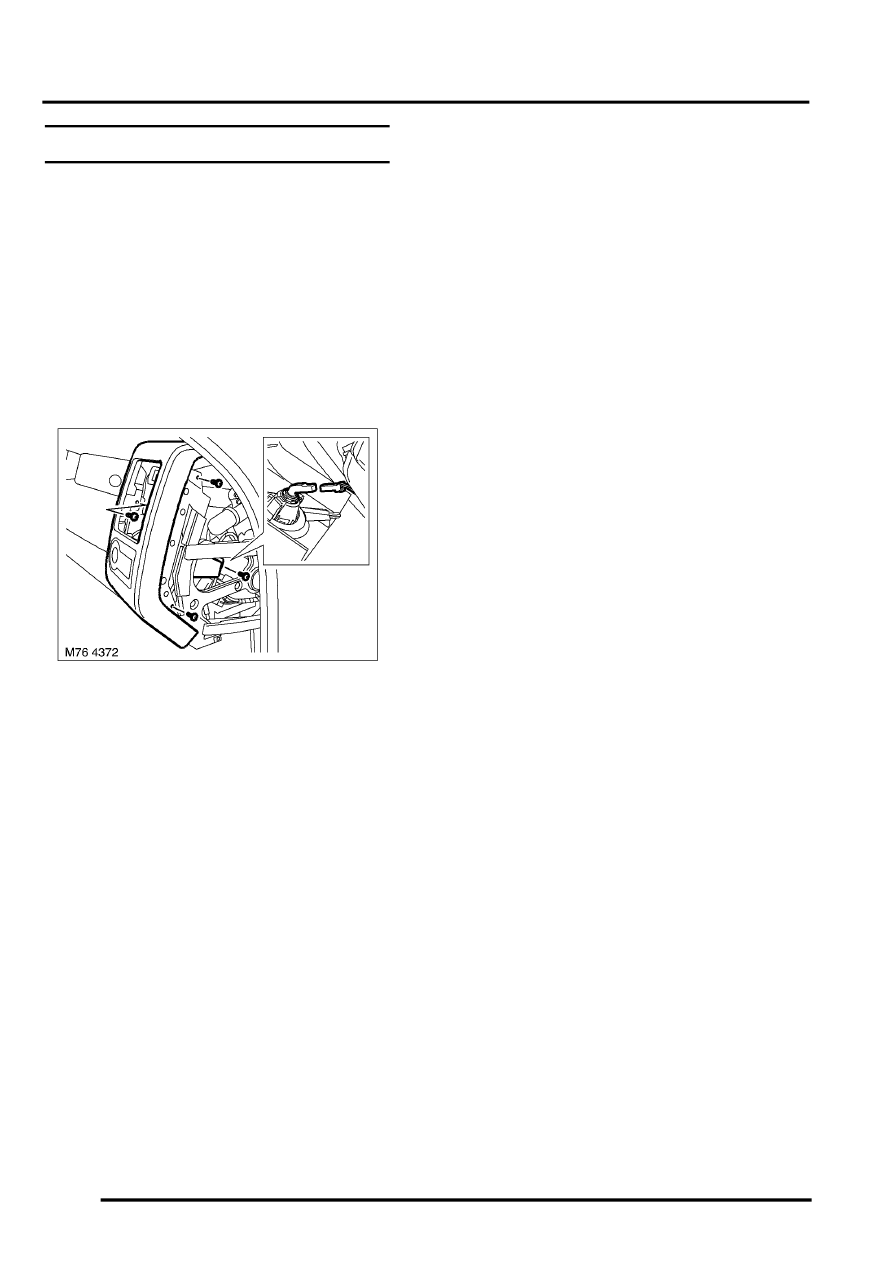

4. Remove 3 Torx screws securing upper finisher

to fascia.

5. Remove screw securing rear of cup holder to

inner mounting bracket.

6. Release finisher from carrier and disconnect

footwell lamp assembly multiplug.

7. Remove upper finisher.

NOTE: Do not carry out further dismantling if
component is removed for access only.

8. Depress 3 clips and remove passenger cup

holder from finisher.

9. Depress clips and remove footwell lamp

assembly from finisher.

Refit

1. Fit footwell lamp assembly to finisher.
2. Fit cup holder to finisher and secure clips.
3. Position finisher and connect lamp multiplug.
4. Fit finisher to fascia and secure with screws.
5. Fit and tighten screw securing cup holder to

mounting bracket.

6. Fit face level air vent.

 +

 HEATING AND VENTILATION,

REPAIRS, Fresh air vent - face level.

7. Fit fascia end closing panel.

 +

 INTERIOR FITTINGS, REPAIRS,

Closing panel - fascia end.

8. Fit 'A' post finisher.

 +

 INTERIOR FITTINGS, REPAIRS,

Trim finisher - 'A' post - upper.
