L322 Range Rover Service Procedures
REAR SUSPENSION
REPAIRS
64-13
Anti-roll bar
$% 64.35.08
Do not depressurise air suspension system before
raising vehicle
Remove
1. Remove exhaust system.
- Td6, REPAIR, Exhaust system and
mountings.

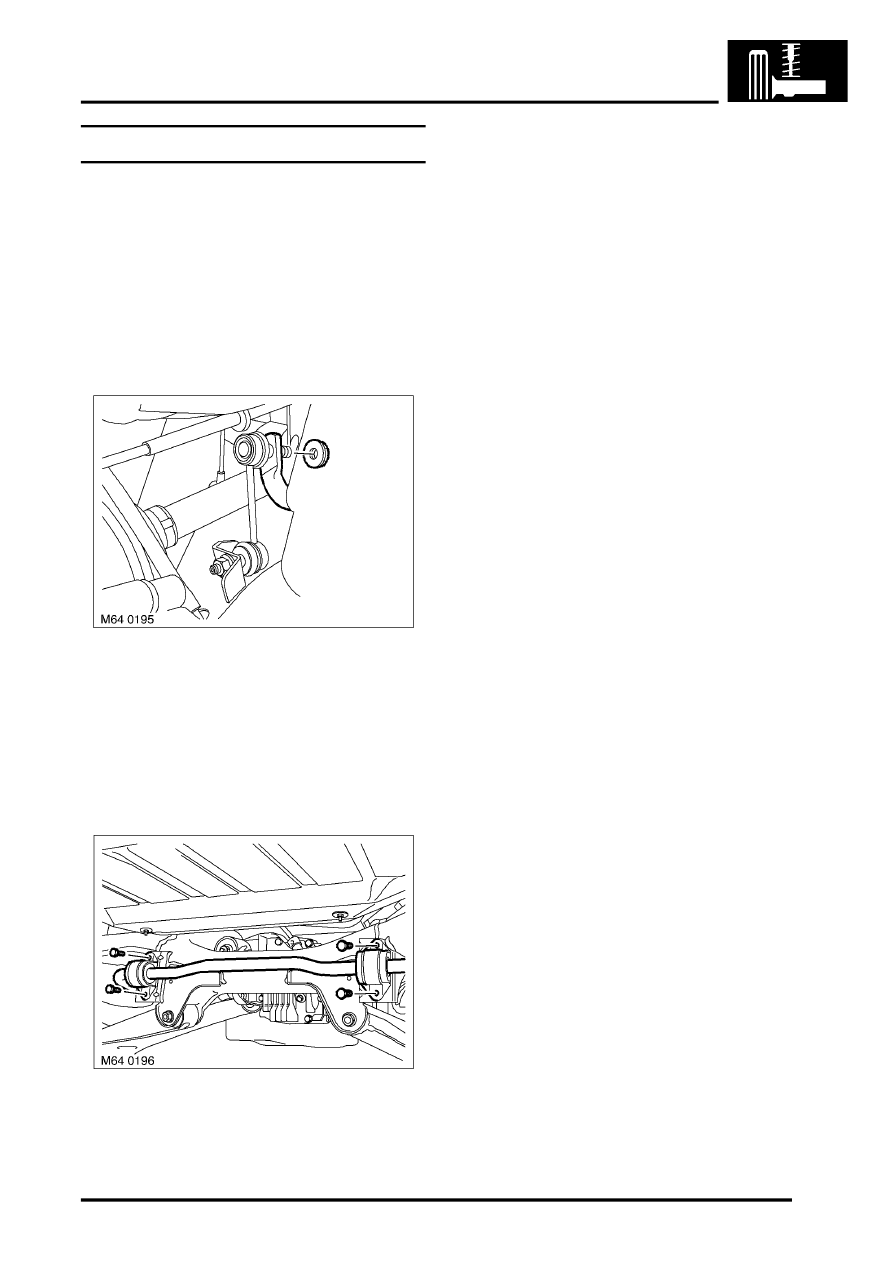

2. Remove nuts securing anti-roll bar links and
release both links from anti-roll bar.
CAUTION: Use an open ended spanner on
flats provided to prevent ball joint rotating.
3. Collect washer from lower fixing.
CAUTION: Note position of washer for refit.
4. Remove 4 bolts securing anti-roll bar bush
clamps to subframe.
5. Remove LH air spring assembly.
6. Manoeuvre anti-roll bar over subframe and
remove from vehicle.
Refit
1. Position anti-roll bar to subframe and
manoeuvre into position.
2. Fit LH air spring.
3. Align anti-roll bar bush clamps, fit bolts and
tighten to 38 Nm (28 lbf.ft).
4. Connect anti-roll bar links, fit washer and nuts
and tighten to 100 Nm (74 lbf.ft).
CAUTION: The washer is hardened and
must be fitted in the correct position.
5. Fit exhaust system.
