L322 Range Rover Service Procedures
RESTRAINT SYSTEMS
REPAIRS
75-3

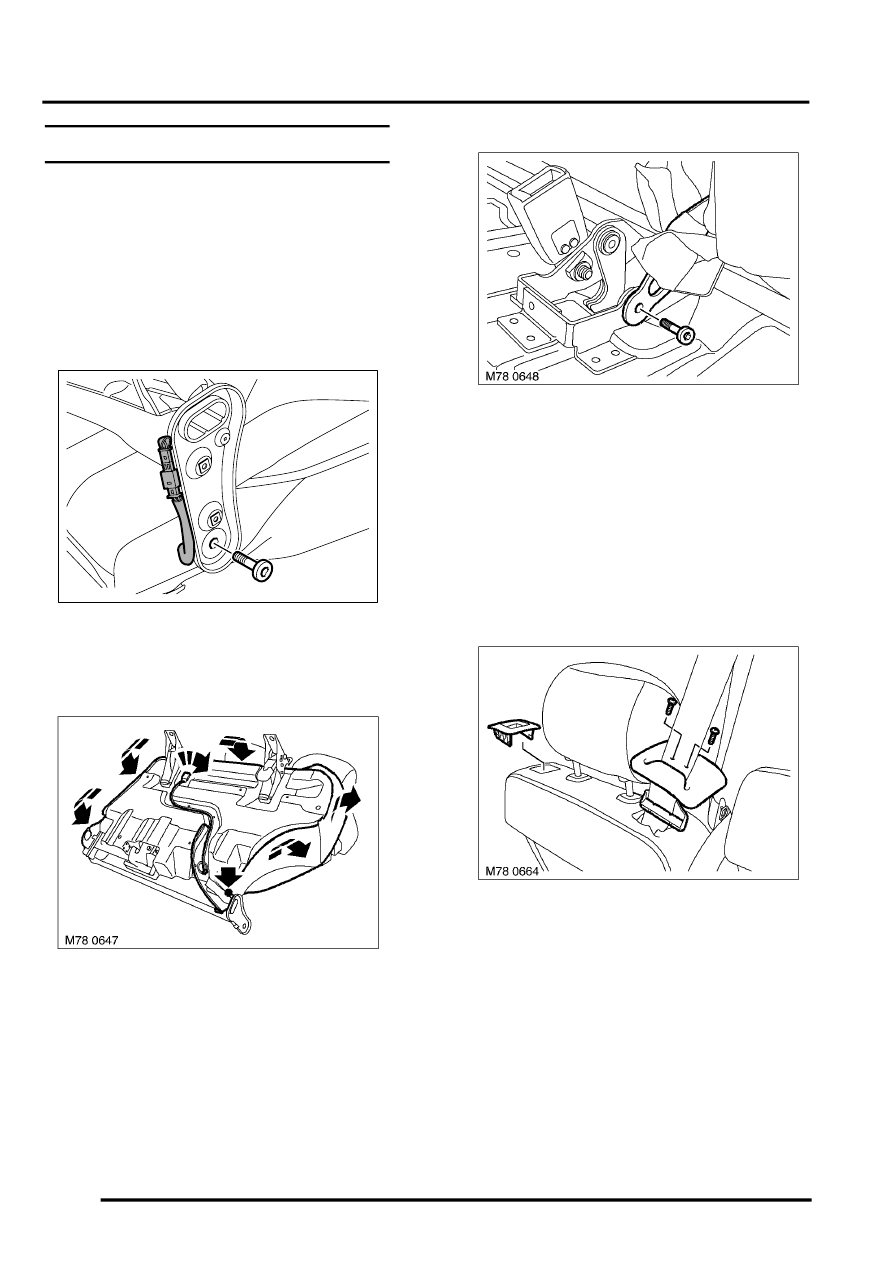

13. Raise squab cover and cushion to gain access
to headrest guides.

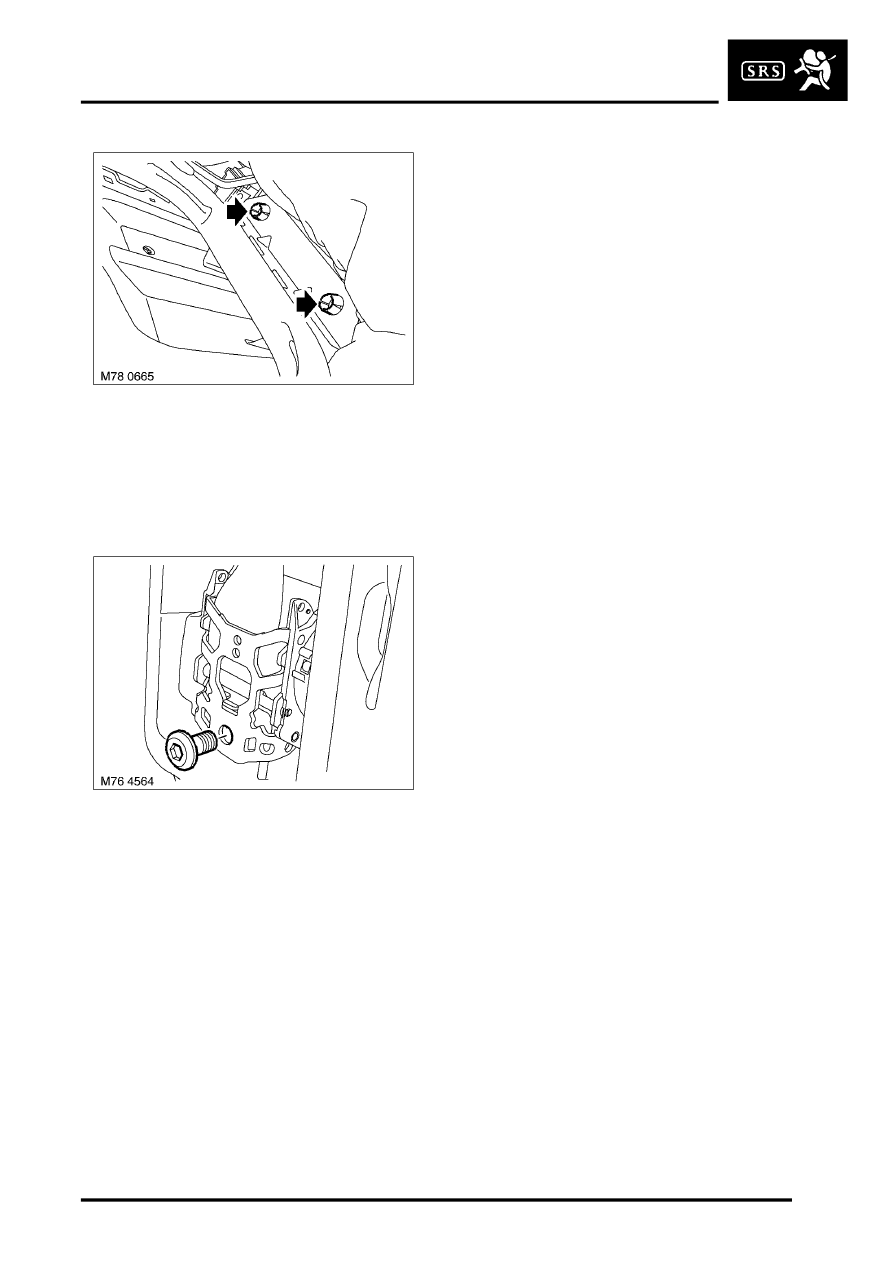

14. Release 3 clips securing headrest guides to
frame, remove guides.
15. Remove cover and cushion assembly from
frame and feed seat belt through assembly.
16. Remove and discard Torx bolt securing seat
belt reel to squab frame, remove reel.
Refit
1. Position seat belt reel and secure with Torx bolt
and tighten to 48 Nm (35 lbf.ft).
2. Feed seat belt through cover and cushion
assembly and fit assembly to frame.
3. Position and fit headrest guides in squab
assembly.
4. Position and fit seat fold release button
escutcheon.
5. Secure squab cover beading to sides and
bottom of frame.
6. Position seat belt finisher and secure with
screws.
7. Fit rear squab finisher.
SEATS, REPAIRS, Finisher - rear
8. Fit armrest front finisher assembly.
SEATS, REPAIRS, Finisher - arm
9. Fit seat belt through cover and cushion
assembly.
10. Position seat belt to frame and fit Torx bolt,
tighten to 48 Nm (35 lbf.ft).
11. Fit seat cover beading to sides and front.
12. Position squab frame to seat frame and secure
LH side with Torx bolt, tighten to 25 Nm (18
lbf.ft).
13. Connect squab cover heated seat multiplug.
14. Fit seat fold mechanism.
SEATS, REPAIRS, Hinge - rear seat
15. Fit seat base finisher.
