SEATS
76-5-36 REPAIRS
9. Raise seat cover and cushion, remove and
discard Torx bolt securing seat belt anchor
point to frame.
10. Pull seatbelt through cushion and cover,
remove seat base.
11. Remove 2 screws securing seat belt finisher,
remove finisher.
12. Release beading securing squab cover to sides
and bottom of frame.

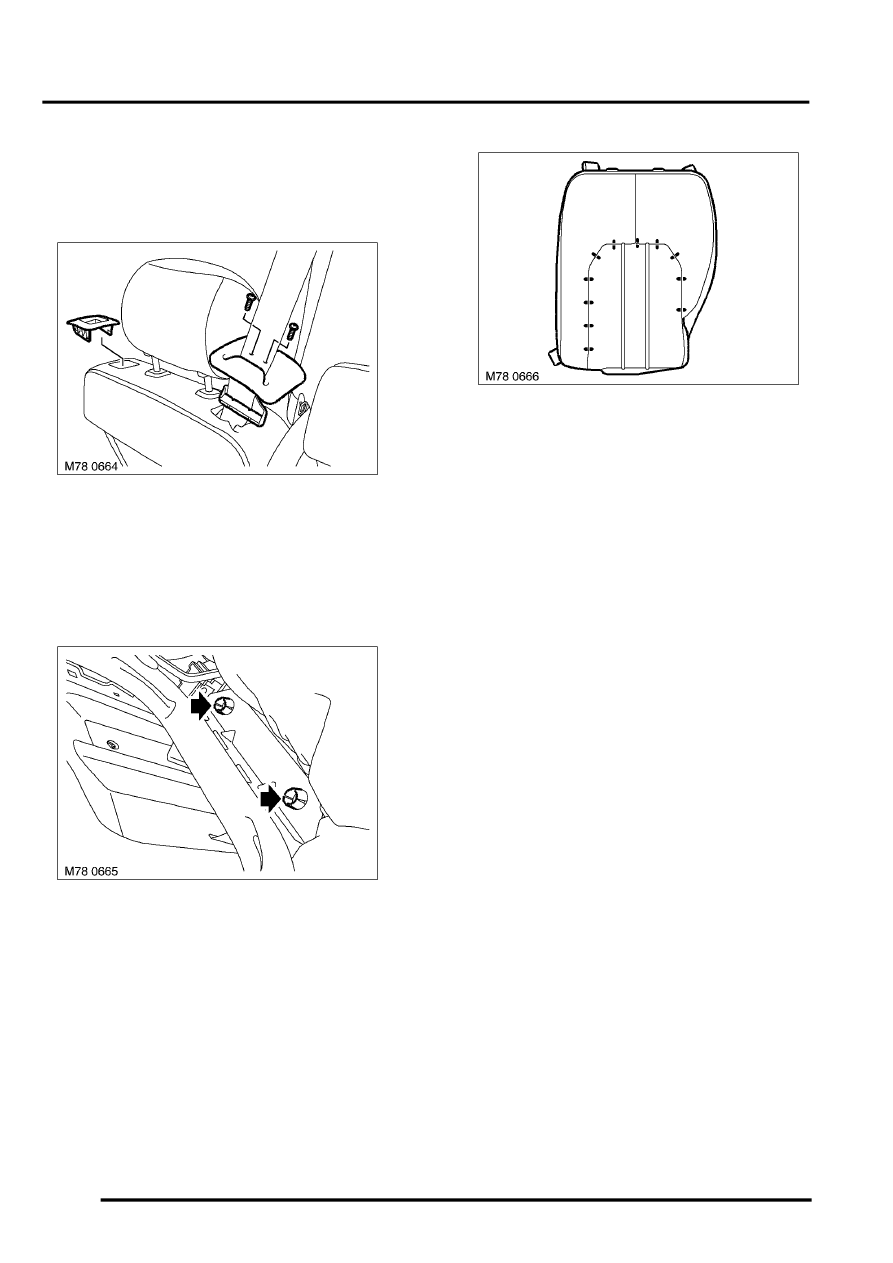

13. Carefully release 4 clips securing seat release
button escutcheon, remove escutcheon.
14. Raise squab cover and cushion to gain access
to headrest guides.
15. Release 3 clips securing headrest guides to
frame, remove guides.
16. Remove cover and cushion assembly from
frame and feed seat belt through assembly.
17. Remove 16 hog rings securing cover to
cushion, remove cover.
Refit
1. Position cover to cushion and secure with hog
rings.
2. Feed seat belt through cover and cushion
assembly and fit assembly to frame.
3. Position and fit headrest guides in squab
assembly.
4. Position and fit seat fold release button
escutcheon.
5. Secure squab cover beading to sides and
bottom of frame.
6. Position seatbelt finisher and secure with
screws.
7. Fit seatbelt through cover and cushion
assembly.
8. Position seatbelt to frame and fit Torx bolt,
tighten to 48 Nm (35 lbf.ft).
9. Fit seat cover beading to sides and front.
10. Connect squab cover heated seat circuit
multiplug.
11. Fit armrest front finisher assembly.
SEATS, REPAIRS, Finisher - arm
12. Position squab frame to seat frame and secure
LH side with Torx bolt, tighten to 25 Nm (18
lbf.ft).
13. Fit rear squab finisher.
SEATS, REPAIRS, Finisher - rear
14. Fit seat fold mechanism.
SEATS, REPAIRS, Hinge - rear seat
15. Fit seat base finisher.
