SEATS

REPAIRS 76-5-13

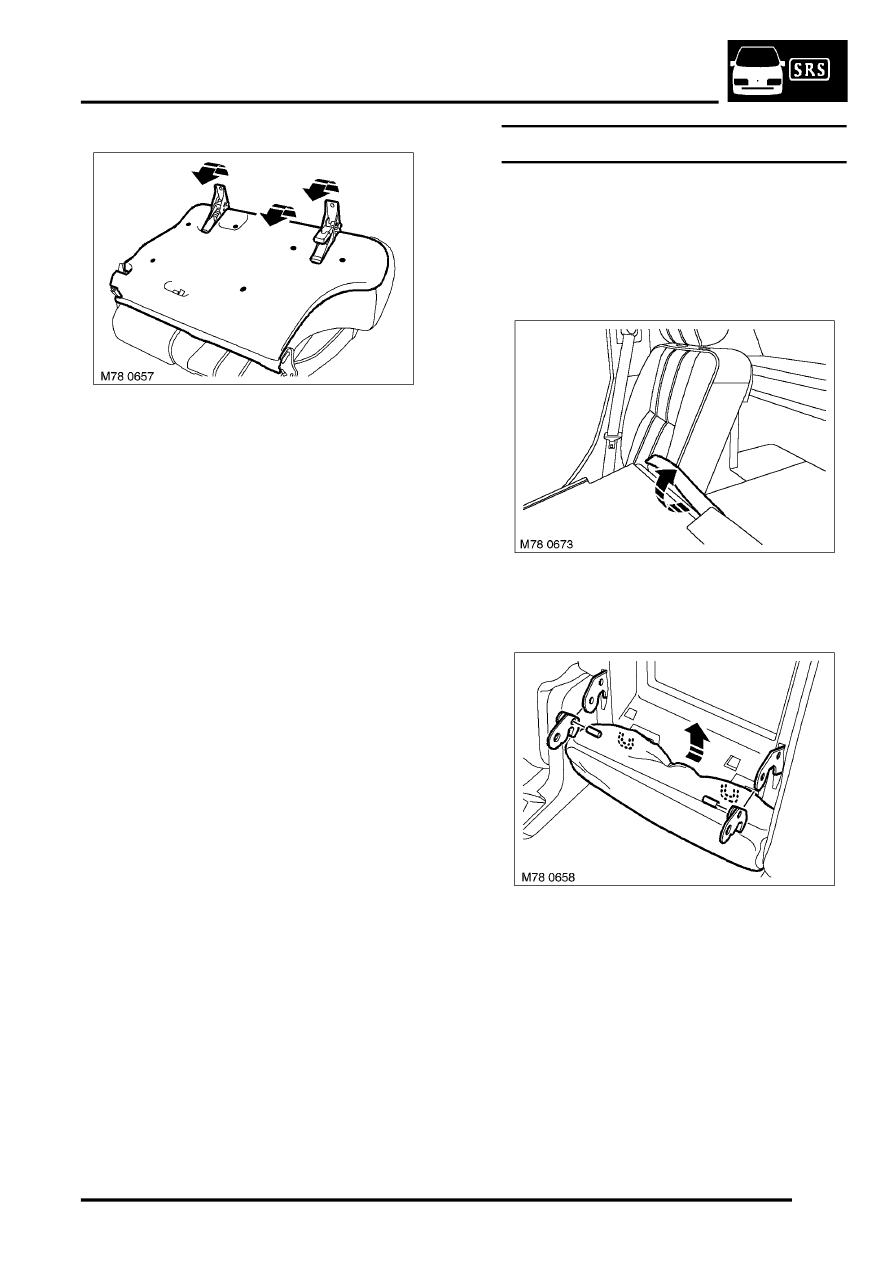

4. Remove 6 scrivets securing finisher.
5. With assistance, push back both spring loaded

seat hinges and remove finisher.

Refit

1. With assistance, push back on both hinges,

position and fit finisher.

2. Fit scrivets to secure finisher.
3. Position LH seat fold mechanism finisher,

secure with screws.

4. Position RH seat fold mechanism finisher,

secure with screws.

5. Fit LH rear seat.

 +

 SEATS, REPAIRS, Rear seat.

Finisher - arm rest - rear seat - front

$% 78.55.14

Remove

1. Remove armrest assembly.

 +

 SEATS, REPAIRS, Arm rest - rear

seat.

2. Release bolster cover lower beading from

squab frame.

3. Release bolster assembly from 2 retaining

clips, remove assembly.

4. Remove both clevis pins securing LH and RH

pivot finishers.

5. Release both finishers from pivot points.
