L322 Range Rover Service Procedures
STEERING
REPAIRS
57-25

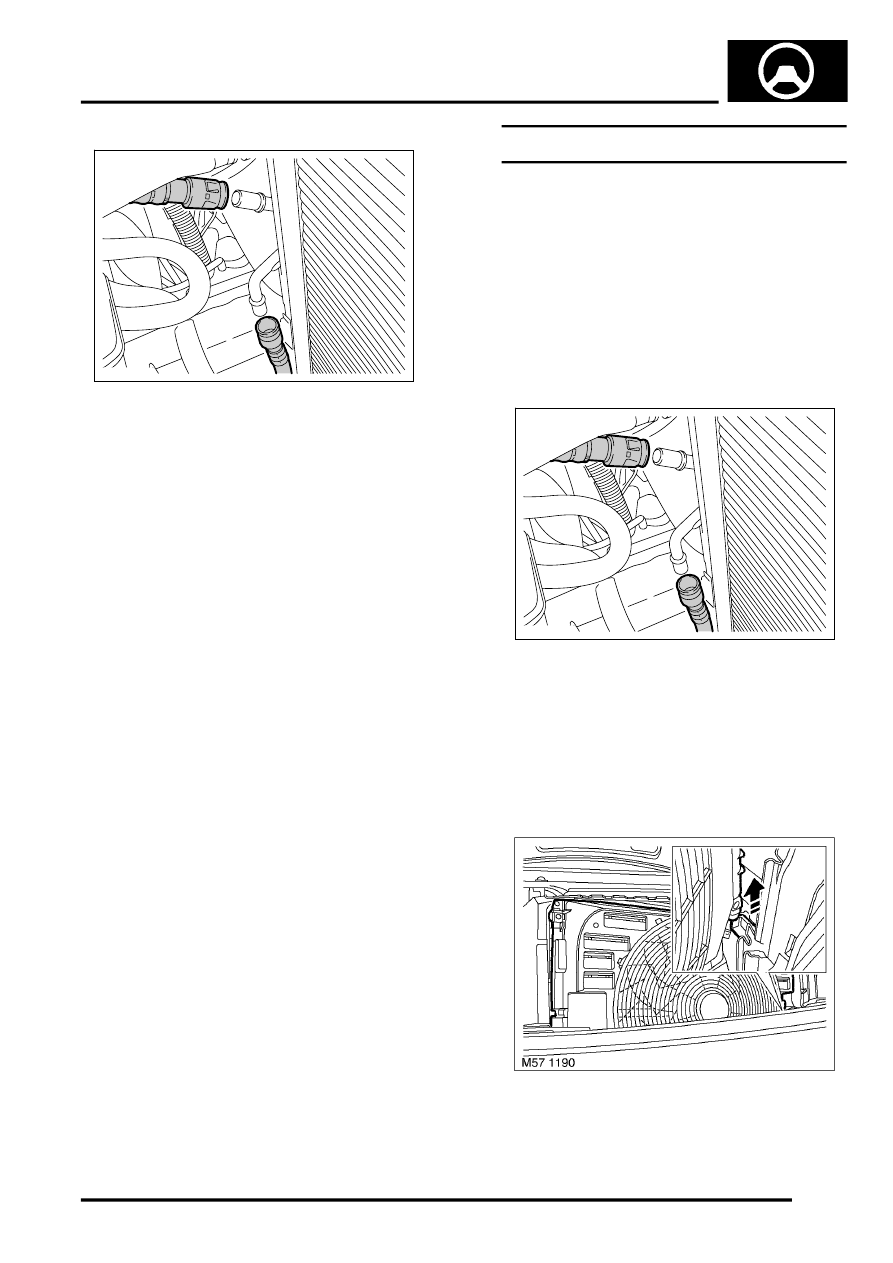

11. Release and disconnect PAS hoses from fluid
cooler.
CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.
12. Ease radiator assembly rearward, release PAS
cooler from retaining clips and remove.
Refit
1. Clean PAS cooler pipe connections.
2. Fit and secure PAS cooler.
3. Fit and secure condenser fan cowl assembly.
4. Position radiator to mounting, fit and secure
retaining clips.
5. Position and secure radiator assembly to
bonnet locking platform.
6. Fit and secure PAS hoses to cooler.
7. Fit intake duct assembly and secure to cooler
with screws.
8. Secure cooler intake duct to bonnet locking
platform and tighten bolts to 3 Nm (2.2 lbf.ft).
9. Fit viscous coupling.
10. Fit front grille.
11. Connect battery earth lead.
12. Top-up PAS reservoir and bleed system.
assisted steering (PAS) system - bleed.
Oil cooler - power steering - V8
$% 57.15.11
Remove
1. Disconnect battery earth lead.
2. Remove front grille.
3. Remove radiator assembly.
4. Position container to collect PAS fluid spillage.
5. Release and disconnect PAS hoses from fluid
cooler.
CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.
6. Release cooling pack from LH mounting
bracket.
M57 1118
M57 1118
