Description: Headlamp-LH
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0009 Headlamp-LH › Description: Headlamp-LH
ConnectorsDescription: Headlamp-LH
| Cav 3 | Col WP | Cct 22 |
| 4 | GR | 22 |
| 5 | WB | 22 |
| 6 | YG | ALL |
| 7 | N | ALL |
| 8 | N | ALL |
| 9 | WG | ALL |
Description: Headlamp-LH

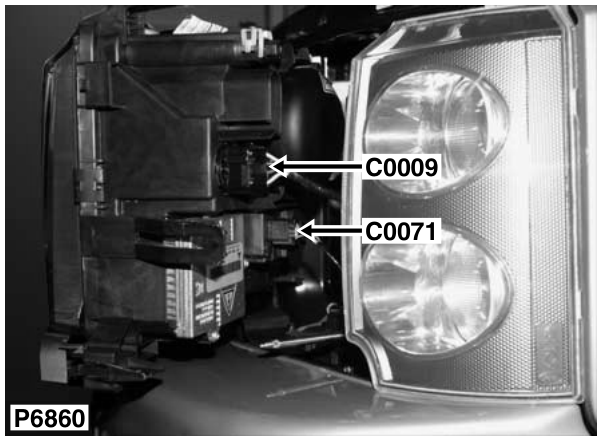

Location: Front of vehicle - LH side
Colour: BLACK Gender: Female
