Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0075 Switch-Brake pedal › Colour: NATURAL Gender: Female

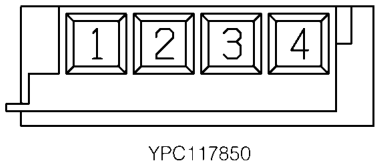

ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col PY | Cct ALL |
| 2 | NB | ALL |
| 3 | NS | ALL |
| 4 | UR | ALL |

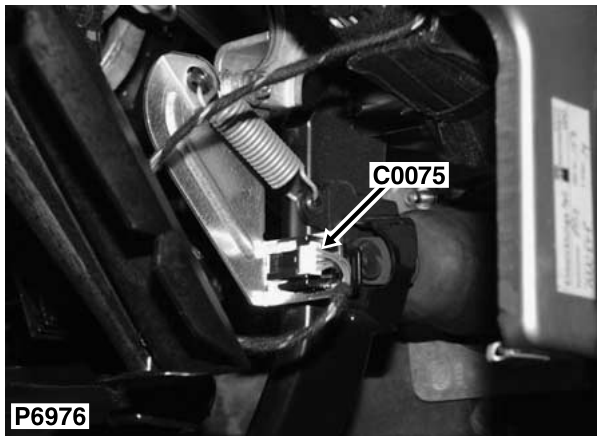

Description: Switch-Brake pedal Location: Driver's footwell
Colour: NATURAL Gender: Female
