Colour: GREEN Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0082 Rotary coupler › Colour: GREEN Gender: Female
ConnectorsColour: GREEN Gender: Female
| Cav 2 | Col SN | Cct ALL |
| 3 | SB | ALL |
| 4 | YN | ALL |
| 5 | YB | ALL |
| 6 | NR | ALL |
| 7 | NB | ALL |
| 8 | YB | 7 |
| 9 | WSY | 7 |
| 10 | PY | 7 |

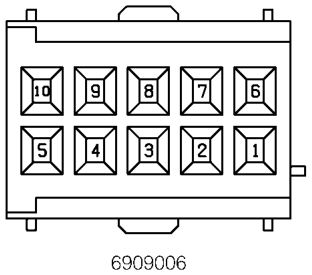

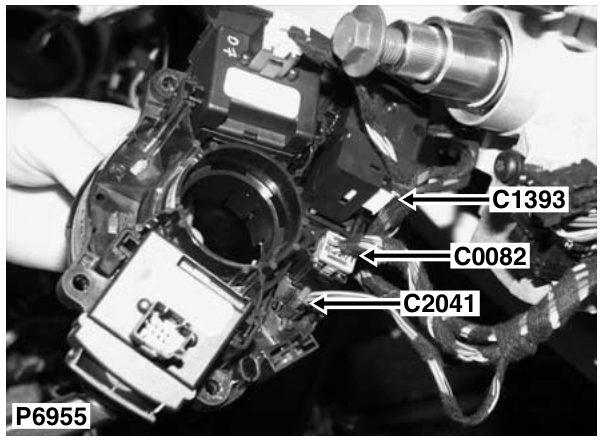

Description: Rotary coupler Location: Underside of steering column
Colour: GREEN Gender: Female
