Description: Pump-Fuel
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0114 Pump-Fuel › Description: Pump-Fuel

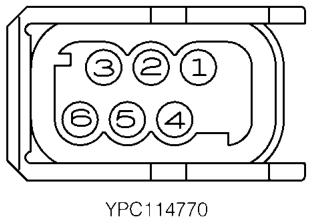

ConnectorsDescription: Pump-Fuel
| Cav 1 | Col WU | Cct ALL |
| 2 | NBY | ALL |
| 3 | NBW | ALL |
| 4 | N | ALL |
| 5 | BRY | ALL |
| 6 | BRW | ALL |
Description: Pump-Fuel

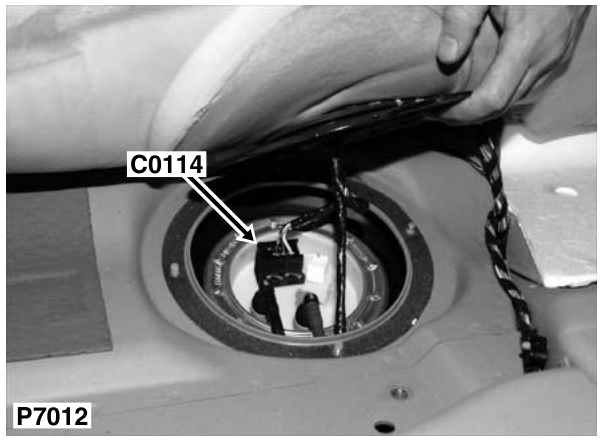

Location: Above fuel tank
Colour: BLACK Gender: Female
