Description: Switch-Sunroof-Front
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0363 Switch-Sunroof-Front › Description: Switch-Sunroof-Front
ConnectorsDescription: Switch-Sunroof-Front
| Cav 2 | Col SR | Cct 3 |
| 3 | YW | 3 |
| 4 | YG | 3 |
| 5 | SB | 3 |
| 6 | YS | 3 |
Description: Switch-Sunroof-Front

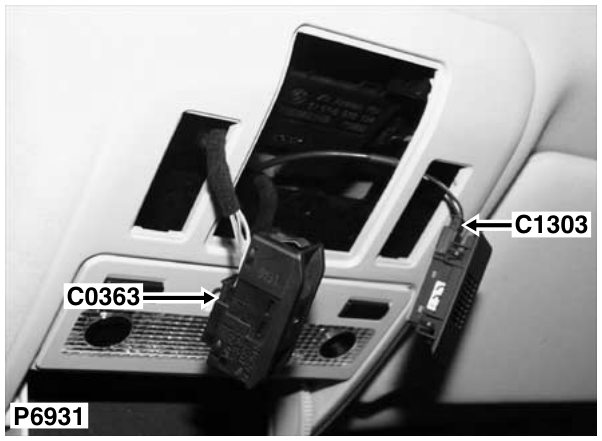

Location: Front of headlining in the centre
Colour: Gender:
