Description: ECU-ABS

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

C0506 ECU-ABS › Description: ECU-ABS

ConnectorsDescription: ECU-ABS

Cav 1	Col N	Cct ALL
2	R	ALL
3	BG	ALL
4	BN	ALL
5	N	ALL
6	RB	ALL
7	YN	ALL
8	NBY	ALL
9	WRY	ALL
10	WUY	ALL
11	WP	ALL
12	R	ALL
13	UW	ALL
14	UG	ALL
15	UY	ALL
16	Y	ALL
17	BG	ALL
18	YW	22
19	YG	ALL
20	SB	ALL
21	UWY	ALL
23	RW	ALL
24	YB	1
25	WU	ALL
26	UB	ALL
27	BY	ALL
28	UR	ALL
29	W	ALL
31	G	ALL
32	UR	ALL
34	NR	ALL
35	YR	15
36	NGY	ALL
39	WSY	ALL
40	YN	1
41	BRY	ALL
42	BP	ALL

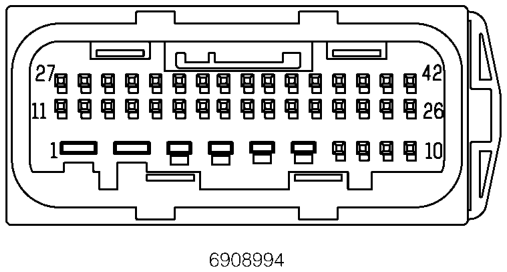

Description: ECU-ABS

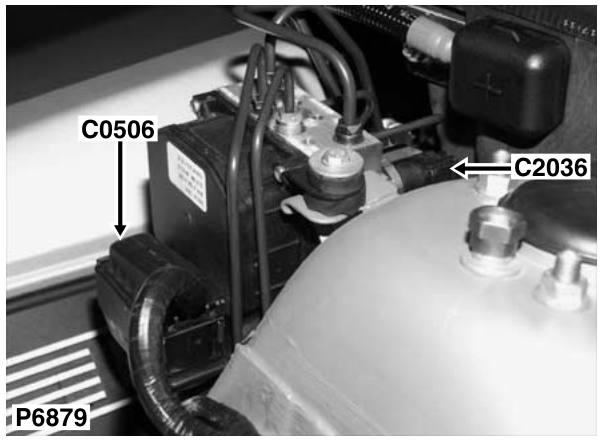

Location: Rear LH side of engine compartment

Colour: Gender:
