Description: Sensor-Key in
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0672 Sensor-Key in › Description: Sensor-Key in

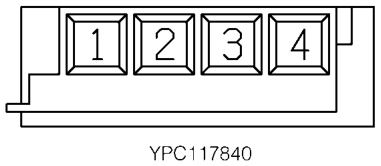

ConnectorsDescription: Sensor-Key in
| Cav 1 | Col B | Cct 1 |
| 2 | S | 1 |
| 3 | U | 1 |
| 4 | NB | 1 |
Description: Sensor-Key in

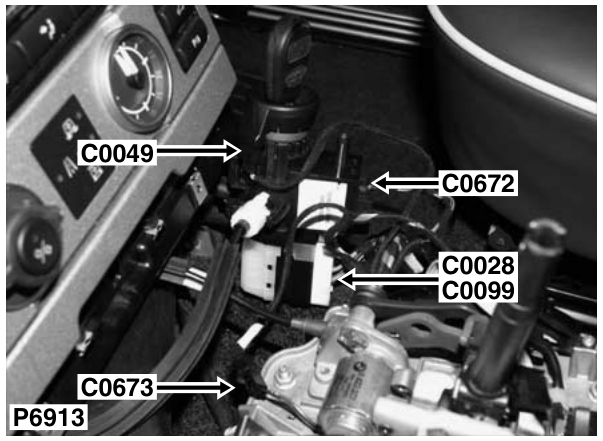

Location: Beneath centre console
Colour: BLACK Gender: Female
