Description: Switch-Transmision-High-Low
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0675 Switch-Transmision-High-Low › Description: Switch-Transmision-High-Low
ConnectorsDescription: Switch-Transmision-High-Low
| Cav 1 | Col WG | Cct ALL |
| 2 | RY | ALL |
| 3 | WU | ALL |
Description: Switch-Transmision-High-Low

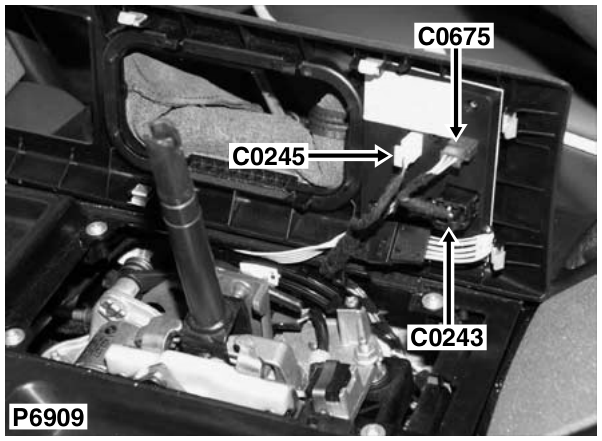

Location: Beneath centre console
Colour: Gender:
