Colour: GREY Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

C0700 Switch pack-Centre console › Colour: GREY Gender: Female

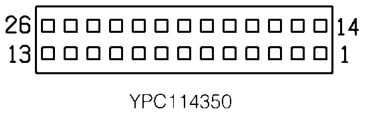

ConnectorsColour: GREY Gender: Female

Cav 2	Col SN	Cct ALL
4	YW	ALL
5	SR	ALL
6	UP	ALL
7	BY	ALL
11	SR	ALL
12	NUY	6
14	UR	23
15	GBY	ALL
17	SU	ALL
18	SP	ALL
19	SY	ALL
20	SG	ALL
21	WY	ALL
22	NWY	6
25	UN	23
26	N	ALL

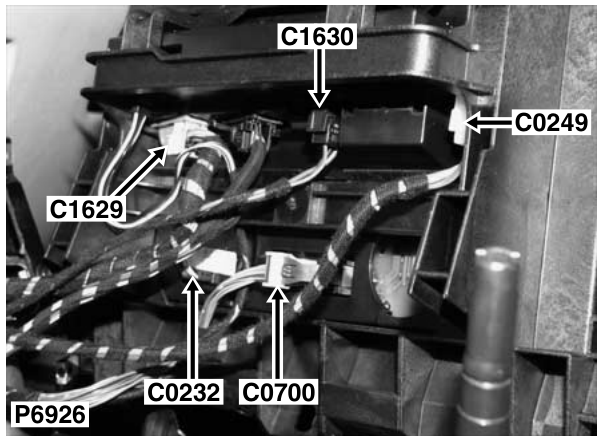

Description: Switch pack-Centre console Location: Behind centre console

Colour: GREY Gender: Female

05 General
