Description: Switch-Window-Rear
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0732 Switch-Window-Rear › Description: Switch-Window-Rear
ConnectorsDescription: Switch-Window-Rear
| Cav 1 | Col SN | Cct 3 |
| 2 | N | 3 |
| 3 | SR | 3 |
| 4 | SB | 3 |

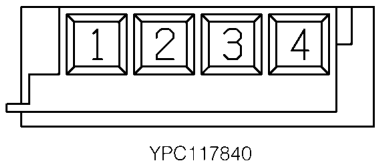

Description: Switch-Window-Rear

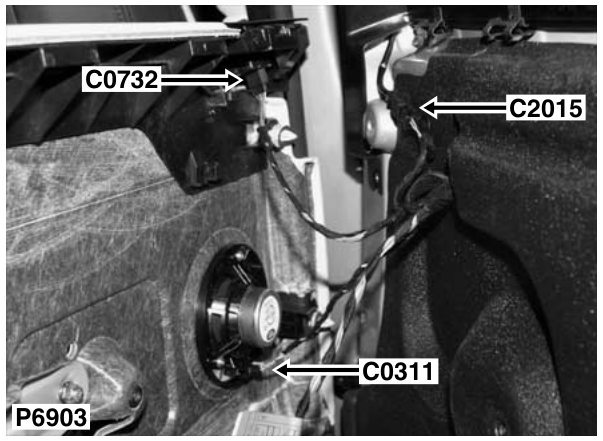

Location: Behind rear door trim panel
Colour: BLACK Gender: Female
