Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0784 ECU-Sunroof-1 › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col RS | Cct 3 |
| 2 | N | 3 |
| 3 | YS | 3 |
| 9 | YG | 3 |
| 10 | UR | 3 |
| 11 | SB | 3 |
| 13 | YW | 3 |

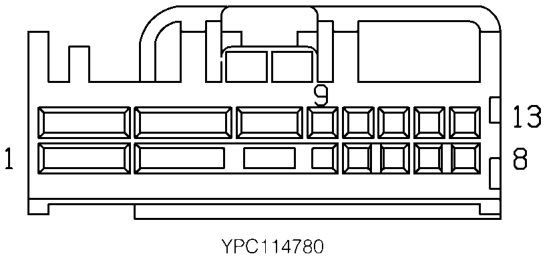

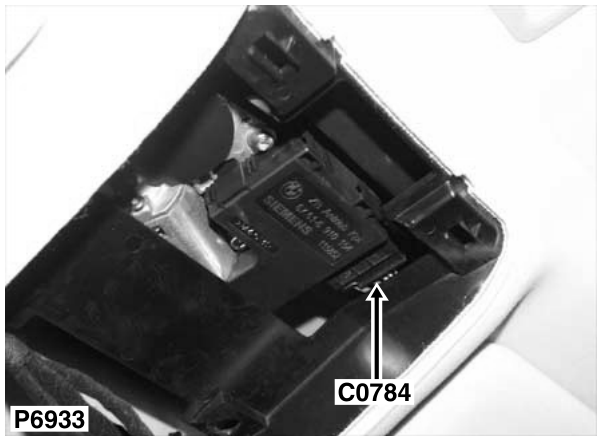

Description: ECU-Sunroof-1 Location: Front of headlining in the centre
Colour: BLACK Gender: Female
