Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0787 Sensor-Throttle position (TP) › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col NG | Cct 3 |
| 2 | UG | 3 |
| 3 | YG | 3 |
| 4 | W | 3 |
| 5 | Y | 3 |
| 6 | WG | 3 |

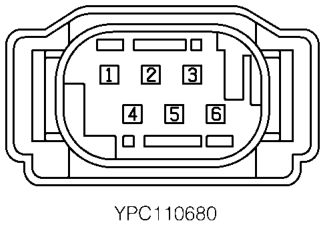

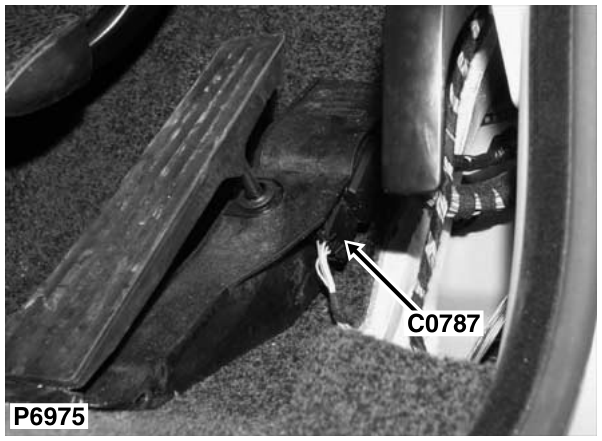

Description: Sensor-Throttle position (TP) Location: Driver's footwell
Colour: BLACK Gender: Female
