Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0873 Pump-Air suspension › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col RY | Cct ALL |
| 2 | WG | ALL |
| 4 | S | ALL |
| 5 | BU | ALL |
| 6 | BRY | ALL |
| 7 | N | ALL |
| 11 | BY | ALL |
| 12 | WU | ALL |

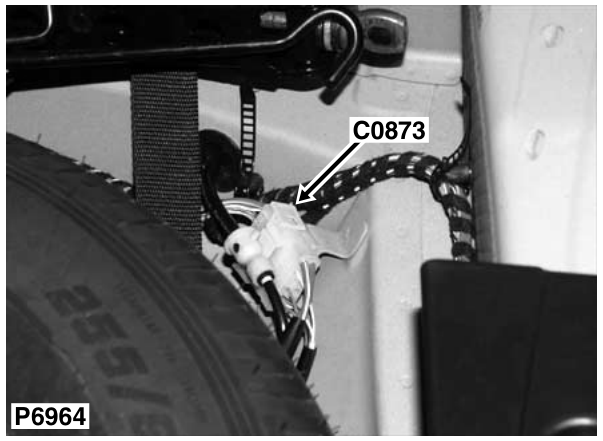

Description: Pump-Air suspension Location: Rear of luggage compartment
Colour: NATURAL Gender: Female
