Colour: BLACK Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

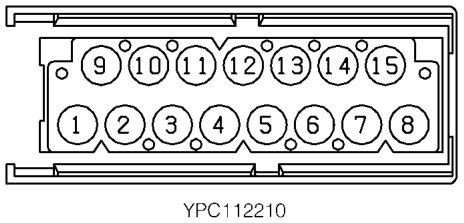

C0937 Module-Lighting switch › Colour: BLACK Gender: Female

ConnectorsColour: BLACK Gender: Female

Cav 1	Col UN	Cct 27
2	SP	ALL
3	SU	ALL
4	YN	ALL
5	SN	ALL
6	UN	ALL
7	NB	ALL
8	UG	ALL
9	YB	ALL
10	BU	ALL
11	YG	ALL
12	SB	ALL
13	YU	ALL
14	UY	ALL
15	R	ALL

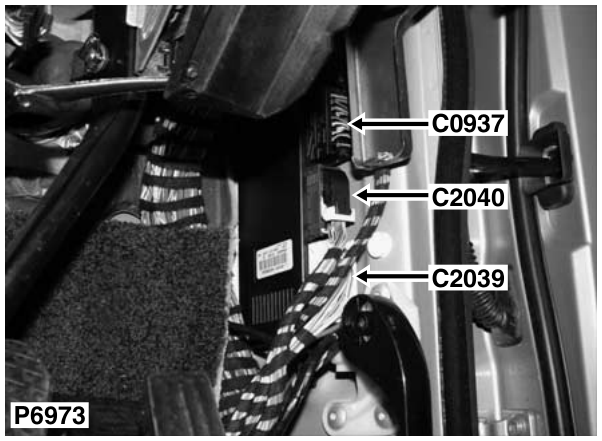

Description: Module-Lighting switch Location: Base of RH 'A' post

Colour: BLACK Gender: Female

05 General
