Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C1392 Relay-Steering column › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col N | Cct ALL |
| 2 | RN | ALL |
| 3 | B | ALL |
| 4 | U | ALL |
| 5 | BU | ALL |
| 6 | UB | ALL |
| 7 | NU | ALL |
| 8 | NR | ALL |
| 14 | NB | ALL |
| 15 | NW | ALL |

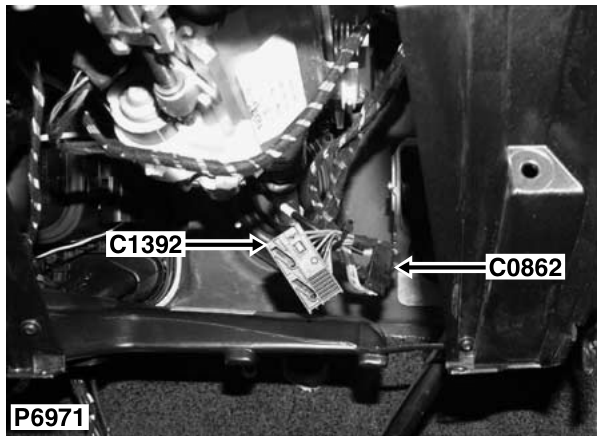

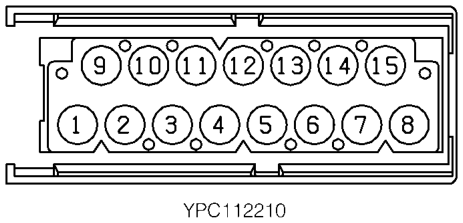

Description: Relay-Steering column Location: Underside of steering column
Colour: BLACK Gender: Female
