Description: Switch-Steptronic
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C1664 Switch-Steptronic › Description: Switch-Steptronic

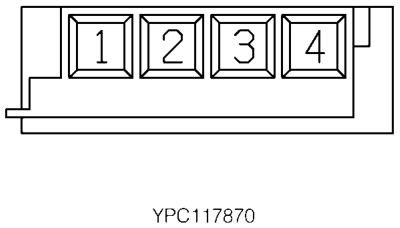

ConnectorsDescription: Switch-Steptronic
| Cav 1 | Col NB | Cct ALL |
| 2 | UY | ALL |
| 3 | US | ALL |
| 4 | WG | ALL |
Description: Switch-Steptronic

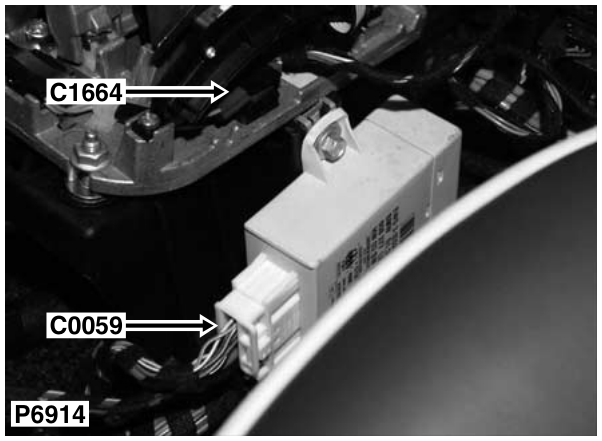

Location: Beneath centre console
Colour: PURPLE Gender: Female
