Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C2030 ECU-Air suspension › Colour: NATURAL Gender: Female

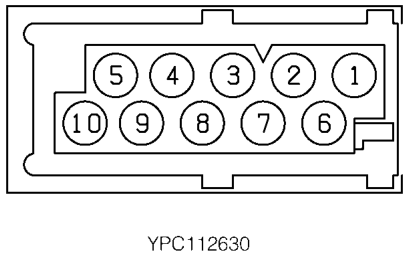

ConnectorsColour: NATURAL Gender: Female
| Cav 2 | Col WU | Cct ALL |
| 3 | UP | ALL |
| 5 | N | ALL |
| 7 | UR | ALL |
| 8 | UN | ALL |
| 10 | RN | ALL |

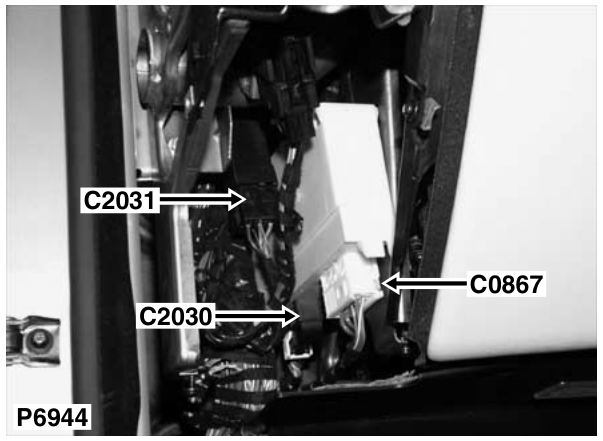

Description: ECU-Air suspension Location: Behind LH side of fascia
Colour: NATURAL Gender: Female
