Description: Switch-Pressure-ABS
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C2036 Switch-Pressure-ABS › Description: Switch-Pressure-ABS
ConnectorsDescription: Switch-Pressure-ABS
| Cav 1 | Col WU | Cct ALL |
| 2 | UB | ALL |
| 3 | BP | ALL |
Description: Switch-Pressure-ABS

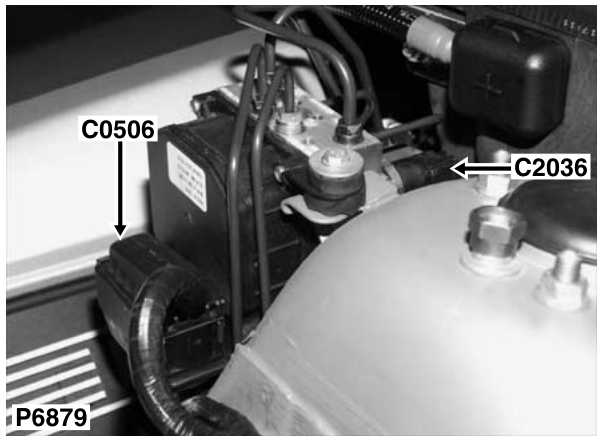

Location: Rear LH side of engine compartment
Colour: GREY Gender: Female
