Colour: NATURAL Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

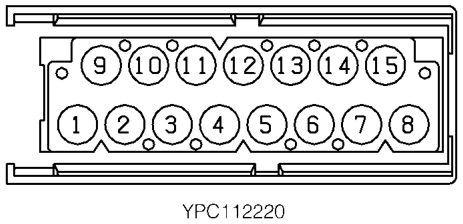

C2039 Module-Lighting switch › Colour: NATURAL Gender: Female

ConnectorsColour: NATURAL Gender: Female

Cav 1	Col SR	Cct ALL
2	N	ALL
3	WU	ALL
4	UY	ALL
5	SG	27
6	WG	ALL
7	YR	ALL
8	R	ALL
9	WY	30
10	WB	22
11	UG	ALL
12	UN	ALL
13	SU	27
14	YB	ALL
15	UG	27

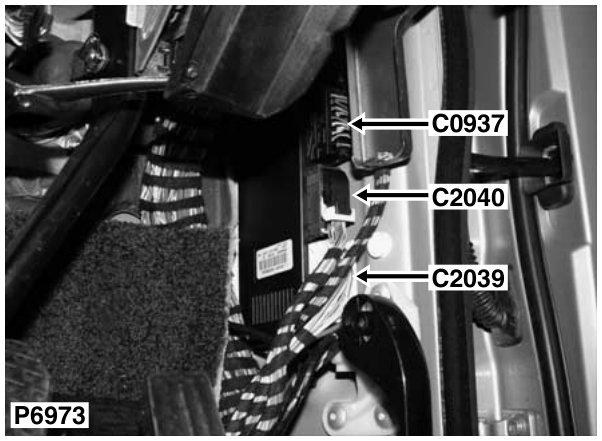

Description: Module-Lighting switch Location: Base of RH 'A' post

Colour: NATURAL Gender: Female

05 General
