Description: Heater-Cushion-Rear-LH
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C2042 Heater-Cushion-Rear-LH › Description: Heater-Cushion-Rear-LH
ConnectorsDescription: Heater-Cushion-Rear-LH
| Cav 1 | Col YN | Cct 19 |
| 2 | WY | 19 |
| 3 | N | 19 |
Description: Heater-Cushion-Rear-LH

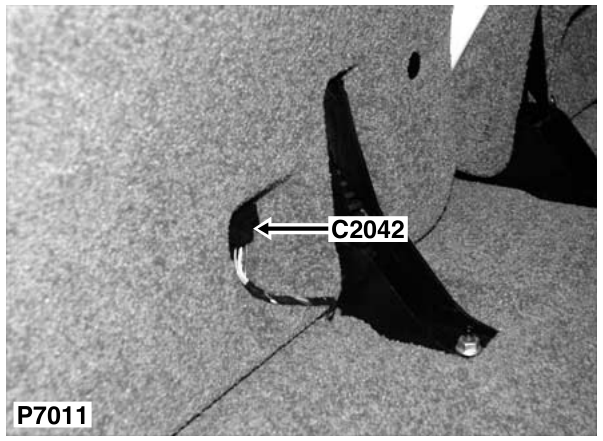

Location: Beneath rear seat
Colour: BLACK Gender: Female
