C2057 Module-Passenger door
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C2057 Module-Passenger door › C2057 Module-Passenger door
ConnectorsC2057 Module-Passenger door
| Cav 1 | Col UR | Cct 3 |
| 2 | SR | 3 |
| 6 | W | 3 |
| 7 | B | 3 |
| 8 | SR | 13 |
| 9 | NR | 3 |
| 11 | NW | 3 |
| 12 | U | 3 |

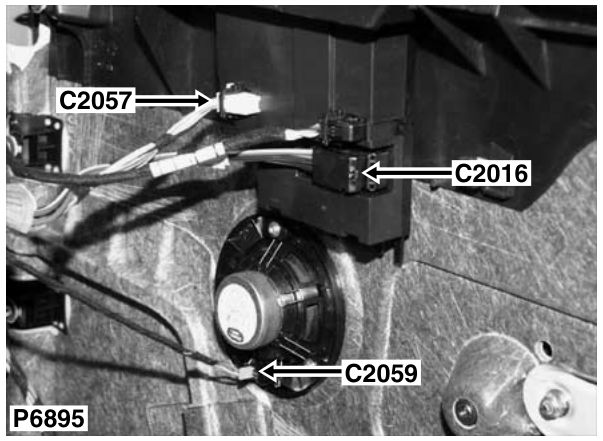

Description: Module-Passenger door Location: Behind passenger's door trim panel
Colour: Gender:
