LR2 (LF) L6-3.2L (2008)

Page 1
background image

Flex Plate: Specifications

Torque Specifications

Flexplate

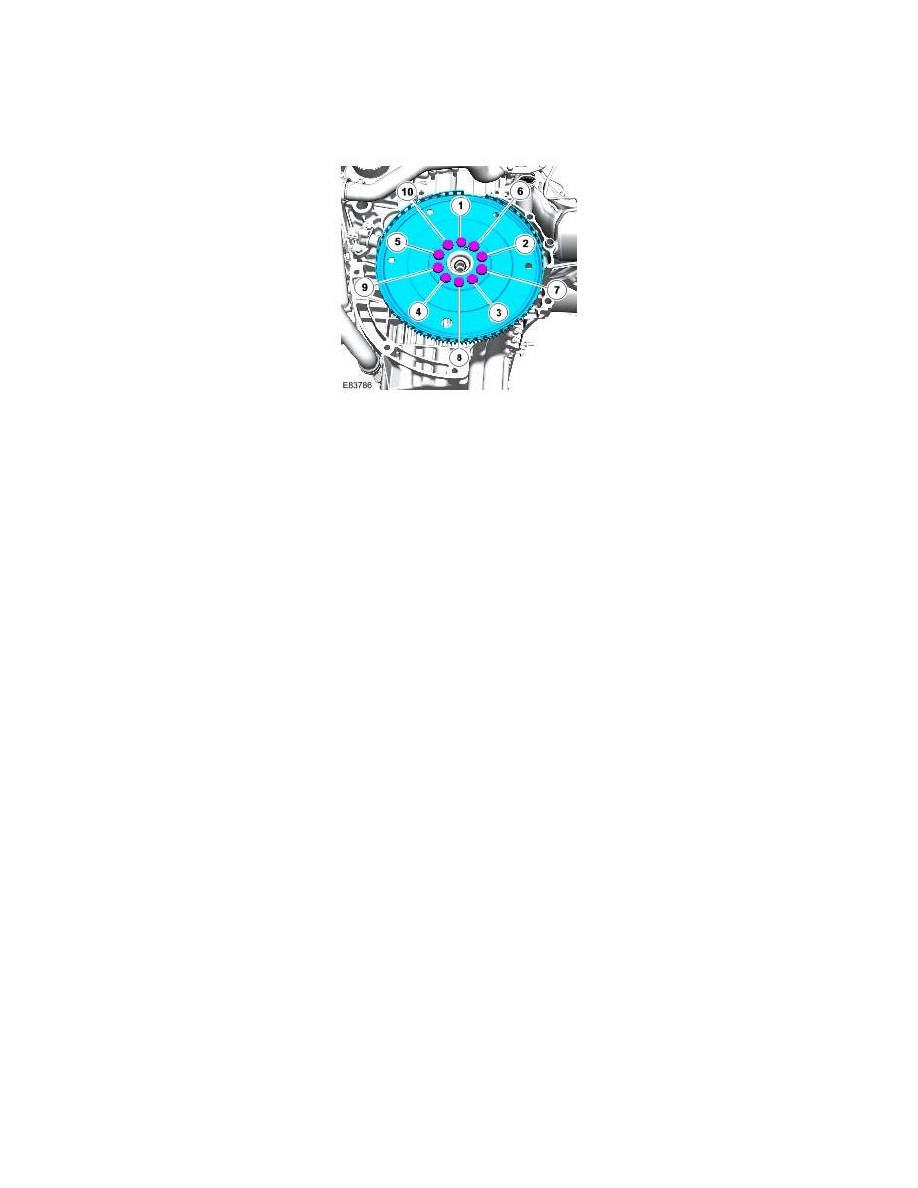

Install the flexplate and tighten the bolts as illustrated.

Torque:
Stage 1. ........................................................................................................................................................................................................................  45 Nm
Stage 2. .............................................................................................................................................................................................................................  50°
