Installation

5 .

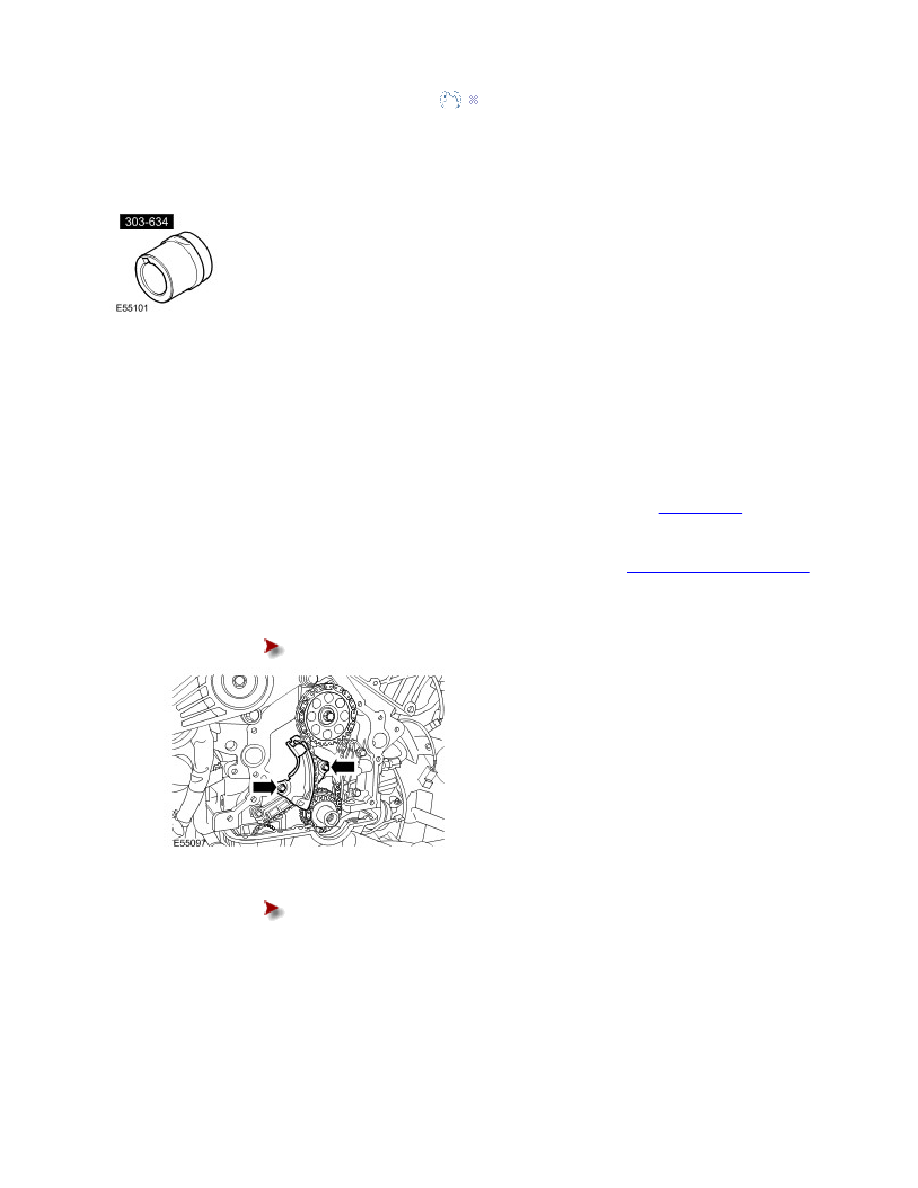

  Install the special tool to the crankshaft.

6 .

  Remove the jackshaft sprocket.

Using an additional wrench and the special tool, restrain the jackshaft sprocket.

Remove and discard the Torx bolt.

7 .

NOTE :

  Note the fitted position.

  Remove the crankshaft sprocket.

Remove the primary timing chain.

1 .

  Install the primary timing chain.

Clean the component mating faces.

Install the crankshaft sprocket, the recessed face locates to the crankshaft side.

Install the special tool to the crankshaft.
