LR3/Disco 3
10 .

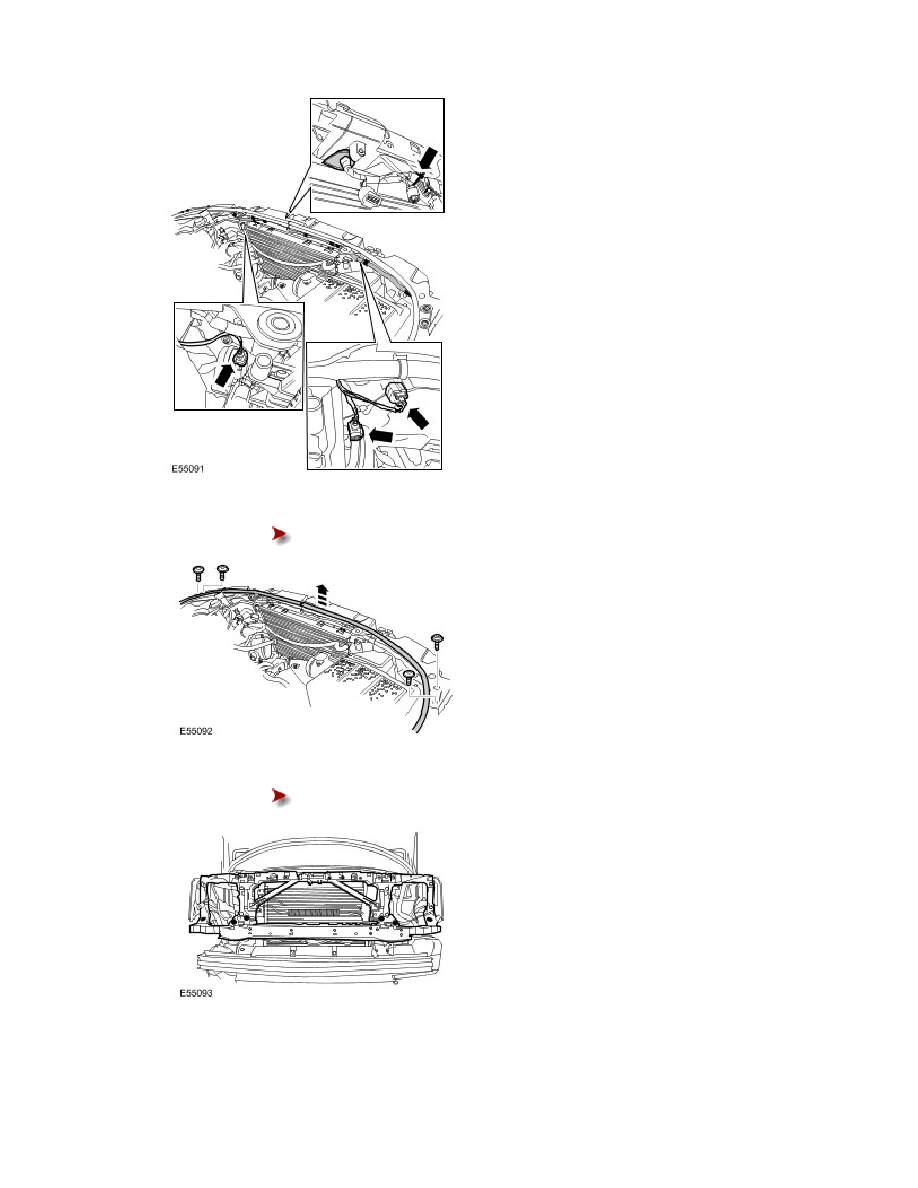

Remove the panel upper fixings.
Remove the 4 Torx bolts.
11 .
Remove the panel lower fixings.
Remove the 6 Torx bolts.
12 .
NOTE :
Note the fitted position.
With assistance, remove the hood latch panel.
10 .
Remove the panel upper fixings.
Remove the 4 Torx bolts.
11 .
Remove the panel lower fixings.
Remove the 6 Torx bolts.
12 .
NOTE :
Note the fitted position.
With assistance, remove the hood latch panel.
