LT230Q Transfer Box - Differential Lock Selector Assembly
TRANSFER BOX
OVERHAUL
37

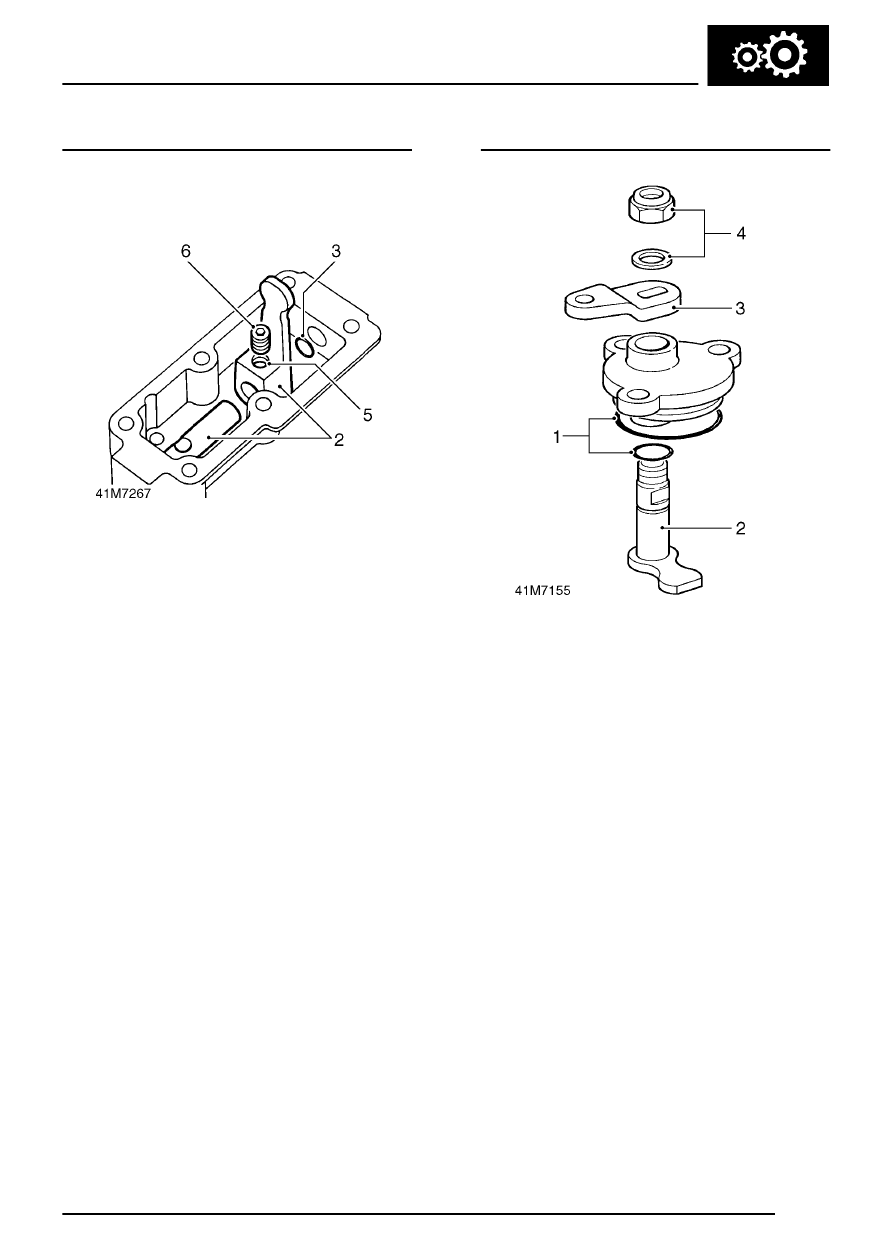

High/low cross shaft housing
1. Lubricate cross shaft and new ’O’ ring with
recommended oil.
2. Insert cross shaft into housing, position
high/low selector finger on shaft.
3. Fit ’O’ ring to shaft, locate end of shaft in
hollow plug.
4. Slide ’O’ ring to end of shaft.
5. Align hole in high/low selector finger with
recess in cross shaft.
6. Apply Loctite 290 to threads of setscrew, fit
and tighten screw.
Differential lock selector
1. Lubricate new ’O’ rings with recommended oil,
fit to selector finger shaft and housing.
2. Insert selector finger shaft into housing.
3. Fit selector lever ensuring that relative
positions of lever and finger are as shown.
4. Fit washer and new self-locking nut, tighten nut
to 15 Nm (11 lbf.ft).
