Overhaul of High/Low Cross Shaft Housing in LT230 Transfer Box
TRANSFER BOX
6
OVERHAUL

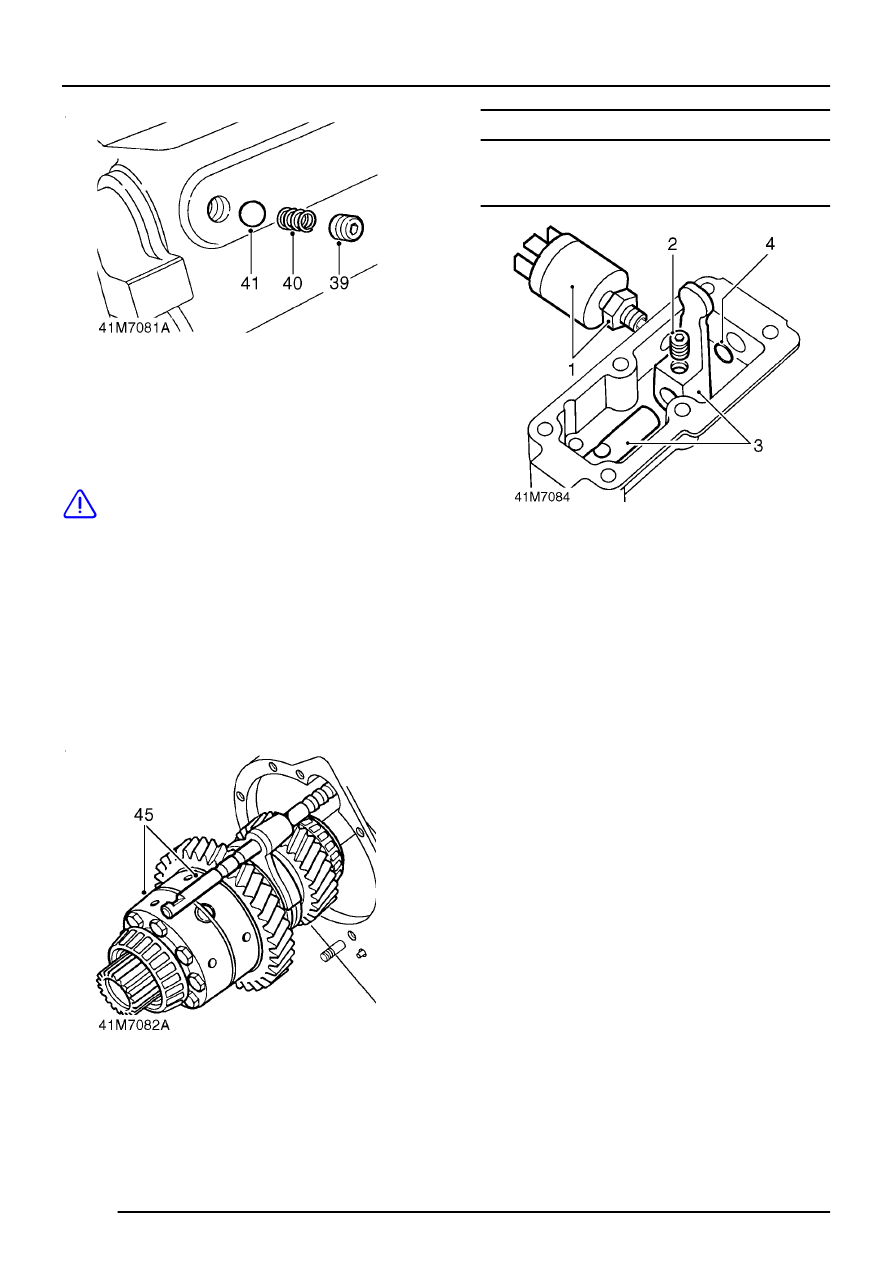

39. Remove plug securing high/low selector shaft
detent spring and ball.
40. Remove detent spring.
41. Remove ball using a stick magnet.
CAUTION: Suitably identify plug, detent
spring and ball to their fitted positions, do
not interchange with differential lock
selector shaft detent components.
If fitted
42. Remove 4 bolts securing interlock solenoid
cover, remove cover and Belleville washer.
43. Remove interlock solenoid.
44. Remove neutral warning lamp switch and
washer.
All transfer boxes
45. Withdraw differential assembly together with
high/low selector shaft and fork.
COMPONENT DISMANTLING
High/low cross shaft housing
1. Loosen locknut and unscrew low detect switch
- if fitted.
2. Remove setscrew securing high/low selector
finger to cross shaft.
3. Withdraw cross shaft from housing, recover
high/low selector finger.
4. Remove and discard ’O’ ring.
