LT230 Transfer Box | Overhaul: Mainshaft Input Gear Assembly
TRANSFER BOX
OVERHAUL
31

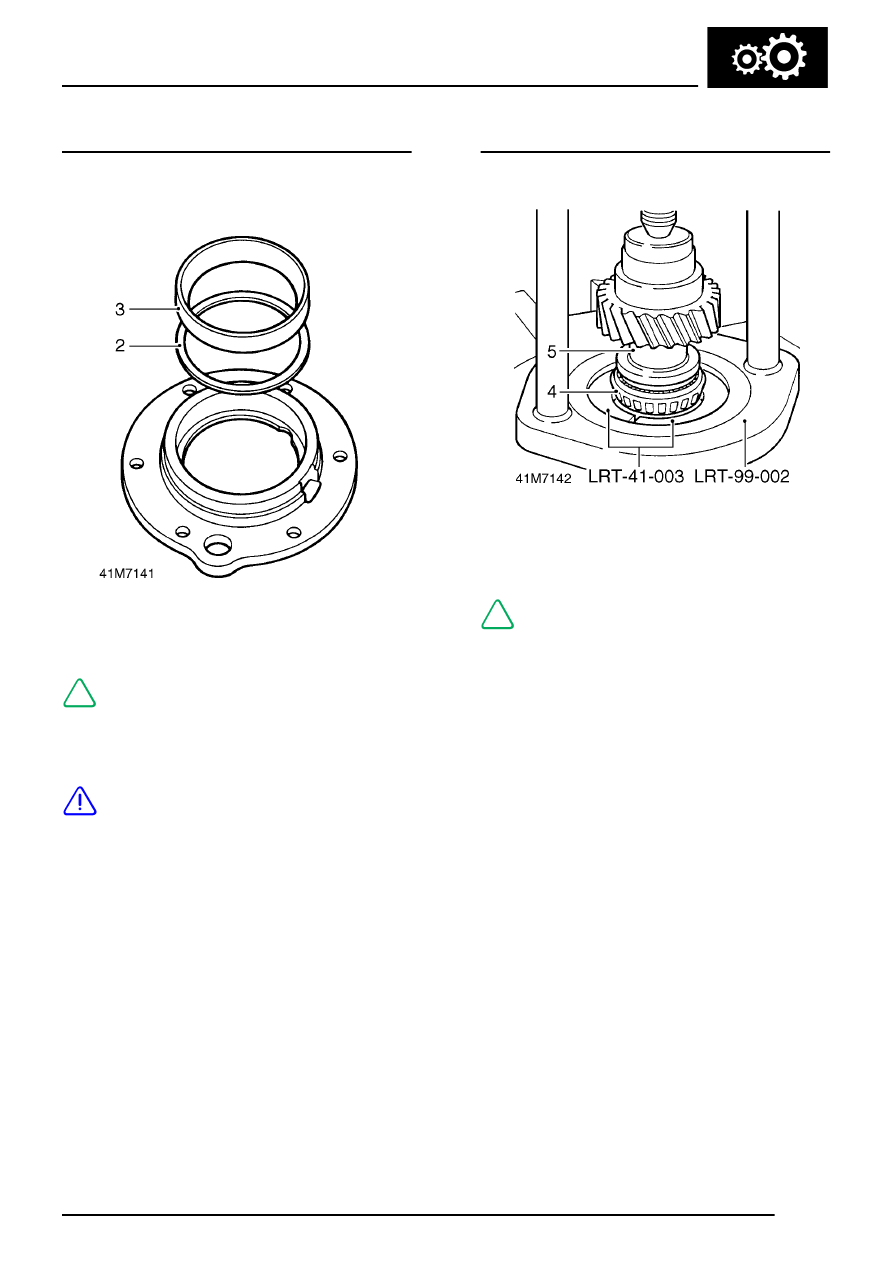

Mainshaft input gear bearing housing
1. Ensure bearing track recess in housing is
clean.
2. Position a 3.15 mm (0.12 in) thick shim in
bearing housing.
NOTE: This is the the thinnest of the
shims available.
3. Using a suitable mandrel, fit new mainshaft
input gear bearing track.
CAUTION: Ensure bearing track is seated
squarely in recess.
Mainshaft input gear assembly
1. Lubricate new bearings with recommended oil.
2. Secure hand press LRT-99-002 in a vice.
3. Position collars LRT-41-003 in hand press.
4. Position new bearing on collars.
NOTE: Smallest diameter of bearing must
be towards collars.
5. Locate end of mainshaft in bearing, press
mainshaft through bearing.
6. Repeat above procedure for remaining
bearing.
