Introduction

INTRODUCTION

GW

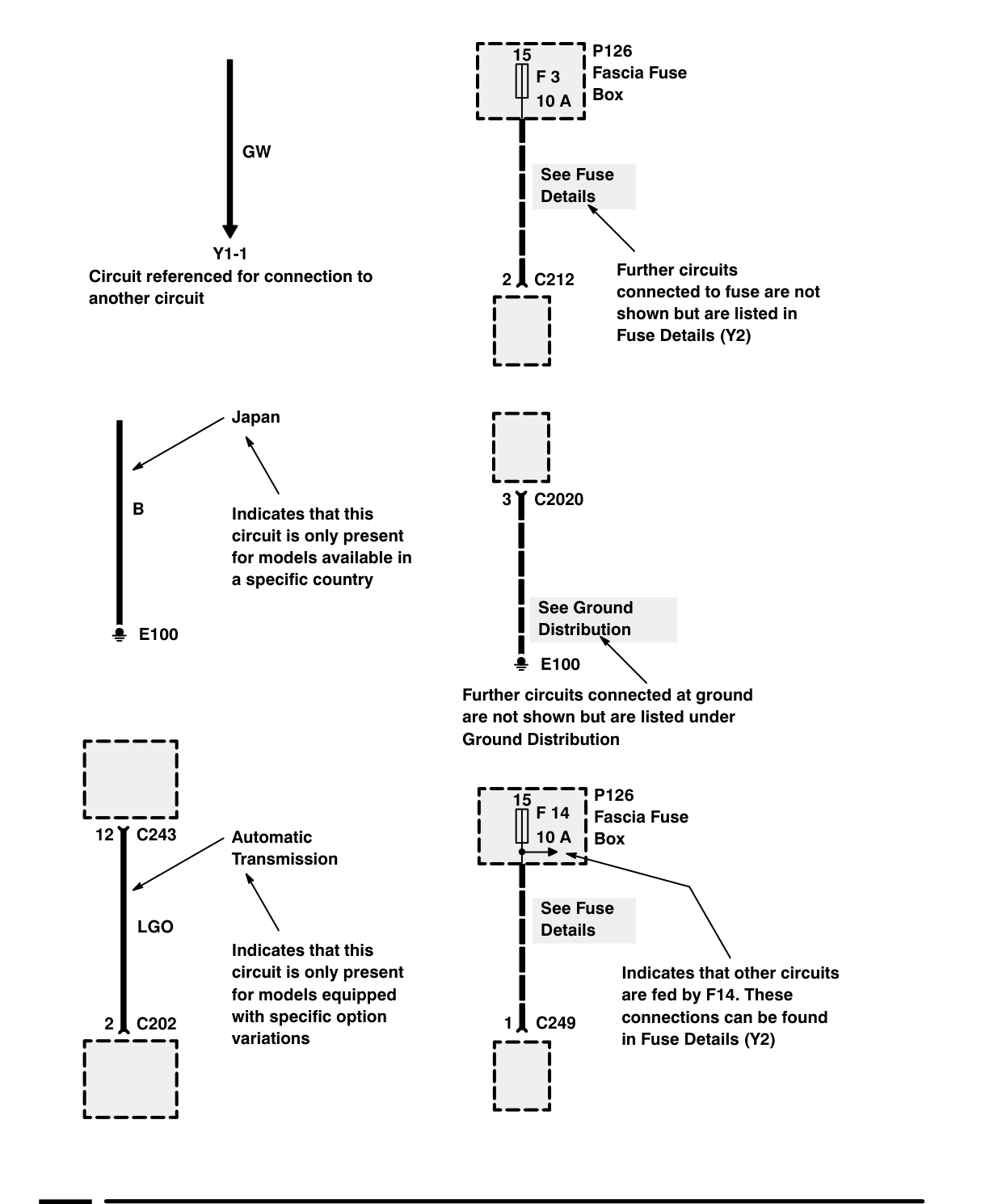

Circuit referenced for connection to another circuit

pd Japan

Indicates that this circuit is only present for models available in a specific country 2 E100

12 C243 Automatic pd Transmission LGO Indicates circuit is only present that this for models equipped 2 1 c202 with specific option variations

]Pi26 r—T5 Fascia Fuse F3 10 A | Box Le JR

| See Fuse Details

2 | C212 Further circuits connected to fuse are not shown but are listed in Fuse Details (Y2)

[EP

ae 3 C2020

| See Ground I Distribution 2 E100 AN Further circuits connected at ground are not shown but are listed under Ground Distribution

rem e—— 15 P126 F14 Fascia Fuse 10 A | Box HR a | See Fuse | Details Indicates that other circuits are fed by F14. These 1 | C249 connections can be found in Fuse Details (Y2)

Ll
