Reversing lamps – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Reversing lamps – circuit diagram
Reversing lampsReversing lamps – circuit diagram

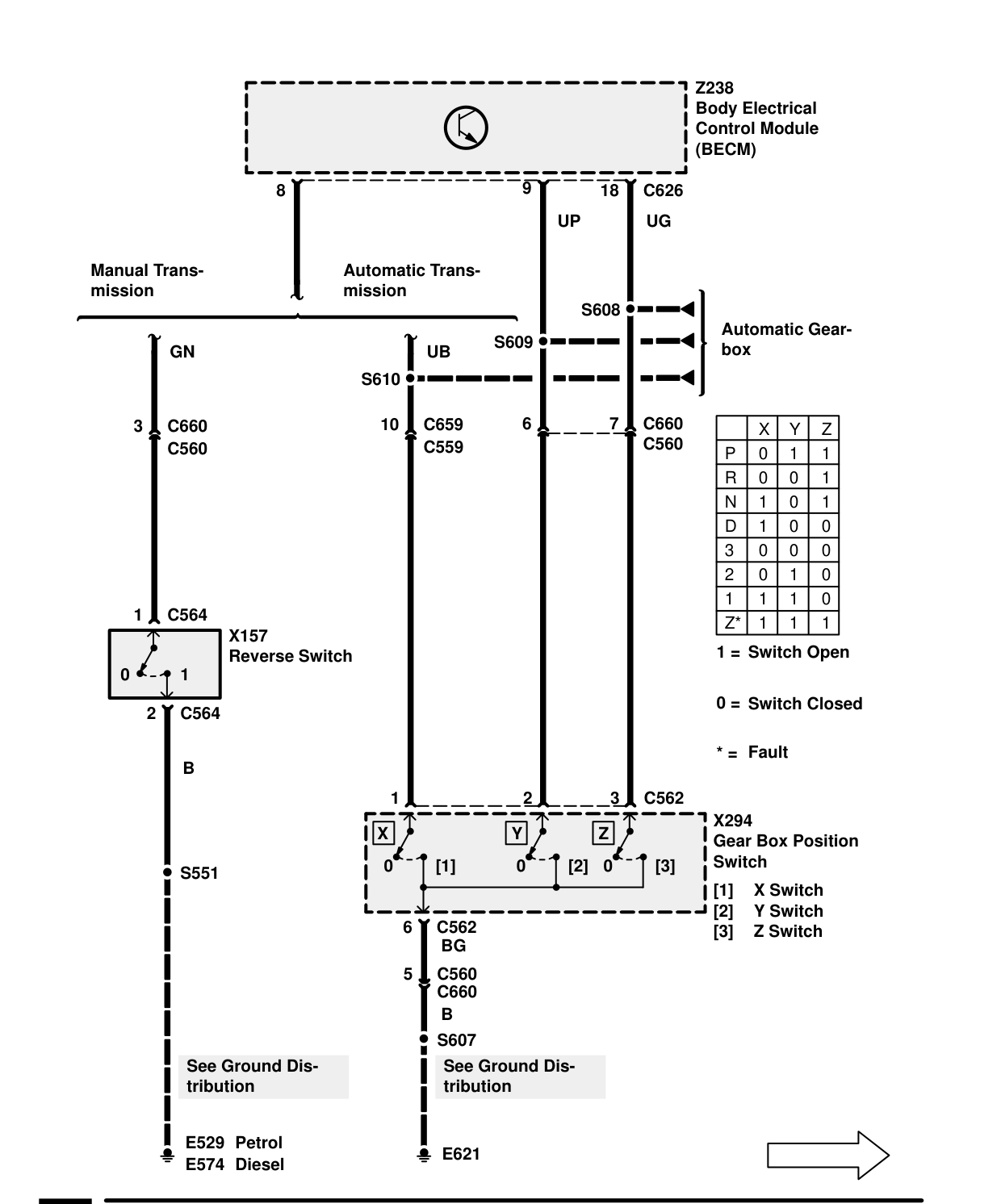

REVERSING LAMPS – CIRCUIT DIAGRAM
Components on this page
- X157 Reverse Switch
- X294 Gear Box Position Switch
- Z238 Body Electrical Control Module (BECM)
