Air suspension – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1997–1999
- Section
- Circuit diagram › Air suspension – circuit diagram
Air suspensionAir suspension – circuit diagram

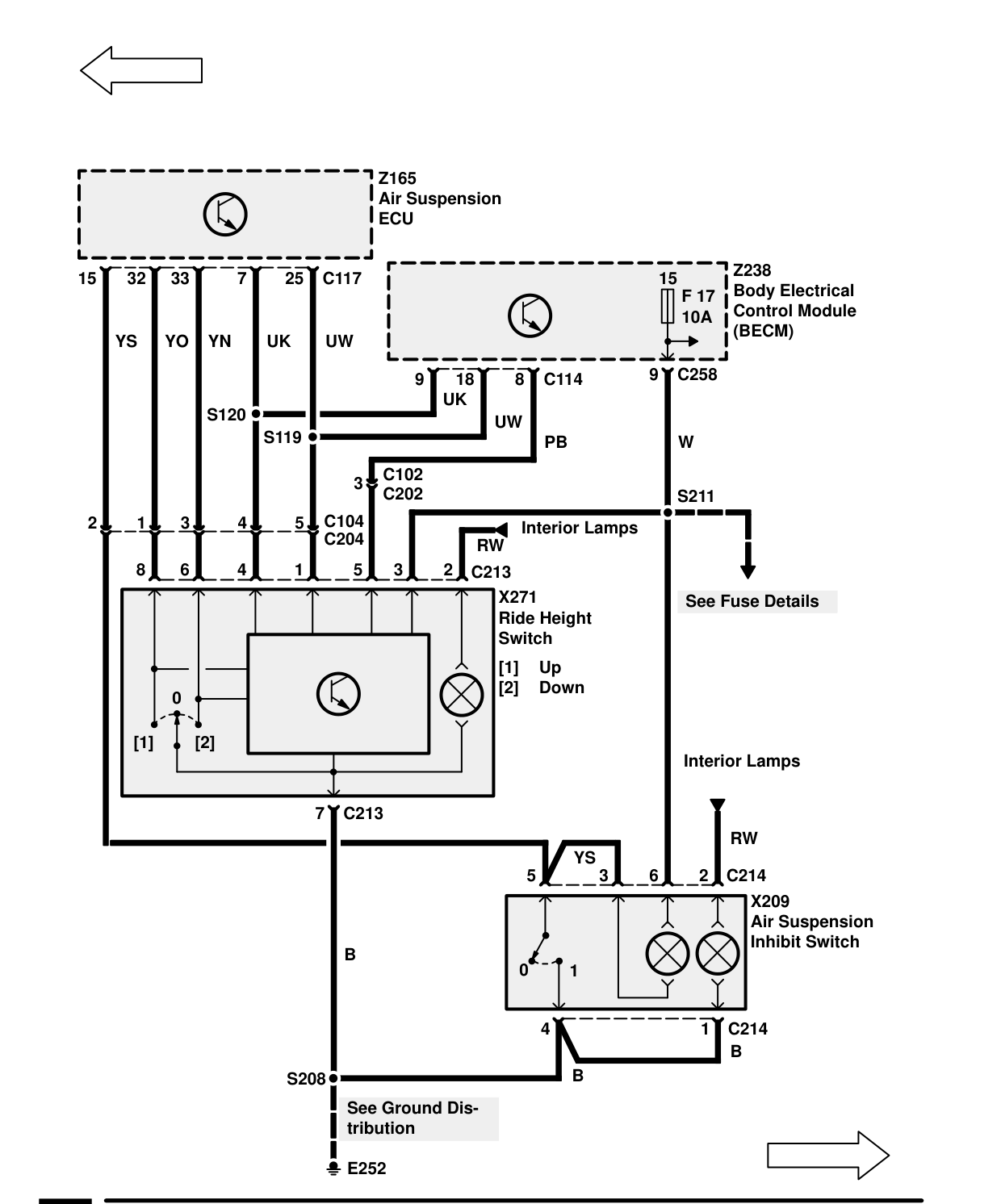

AIR SUSPENSION – CIRCUIT DIAGRAM
Components on this page
- X209 Air Suspension Inhibit Switch
- X271 Ride Height Switch
- Z165 Air Suspension ECU
- Z238 Body Electrical Control Module (BECM)
