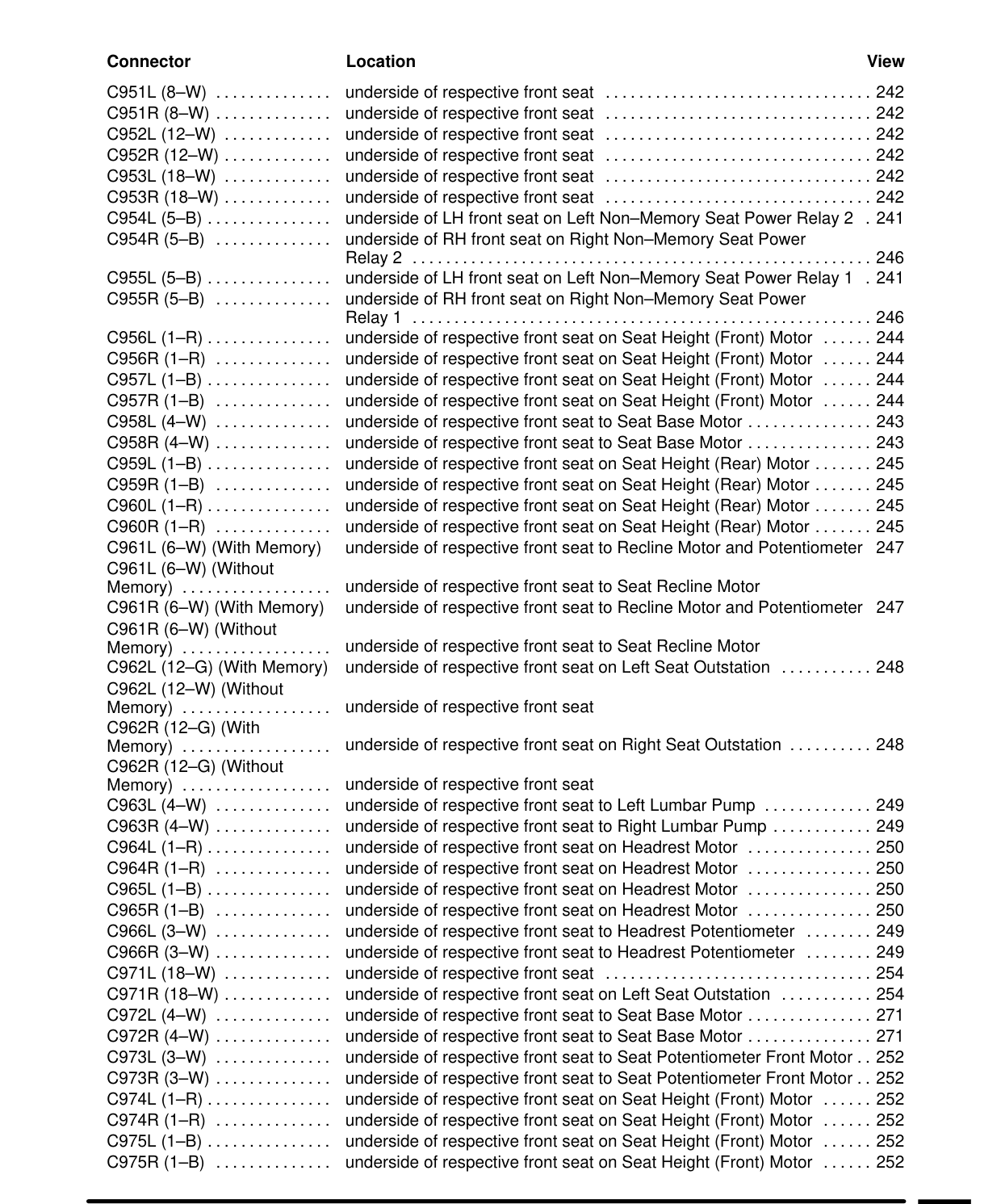

Component location table

COMPONENT LOCATION TABLE

Connector Location

C951L (8-W) . . . . . . . . . . . . . . underside of respective front seat C951R (8-W) . . . . . . . . . . . . . . underside of respective front seat C952L (12-W) . . . . . . . . . . . . . underside of respective front seat C952R (12-W) . . . . . . . . . . . . . underside of respective front seat C953L (18-W) . . . . . . . . . . . . . underside of respective front seat C953R (18-W) . . . . . . . . . . . . . underside of respective front seat C954L (5-B) . . . . . . . . . . . . . . . underside of LH front seat on Left Non-Memory Seat Power Relay 2 C954R (5-B) . . . . . . . . . . . . . . underside of RH front seat on Right Non-Memory Seat Power Relay 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C955L (5-B) . . . . . . . . . . . . . . . underside of LH front seat on Left Non-Memory Seat Power Relay 1 C955R (5-B) . . . . . . . . . . . . . . underside of RH front seat on Right Non-Memory Seat Power Relay 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C956L (1-R) . . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Front) Motor C956R (1-R) . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Front) Motor C957L (1-B) . . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Front) Motor C957R (1-B) . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Front) Motor C958L (4-W) . . . . . . . . . . . . . . underside of respective front seat to Seat Base Motor C958R (4-W) . . . . . . . . . . . . . . underside of respective front seat to Seat Base Motor C959L (1-B) . . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Rear) Motor C959R (1-B) . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Rear) Motor C960L (1-R) . . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Rear) Motor C960R (1-R) . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Rear) Motor C961L (6-W) (With Memory) underside of respective front seat to Recline Motor and Potentiometer 247 C961L (6-W) (Without underside of respective front seat to Seat Recline Motor Memory) . . . . . . . . . . . . . . . . . . C961R (6-W) (With Memory) underside of respective front seat to Recline Motor and Potentiometer 247 C961R (6-W) (Without underside of respective front seat to Seat Recline Motor Memory) . . . . . . . . . . . . . . . . . . C962L (12-G) (With Memory) underside of respective front seat on Left Seat Outstation C962L (12-W) (Without underside of respective front seat Memory) . . . . . . . . . . . . . . . . . . C962R (12-G) (With underside of respective front seat on Right Seat Outstation Memory) . . . . . . . . . . . . . . . . . . C962R (12-G) (Without underside of respective front seat Memory) . . . . . . . . . . . . . . . . . . C963L (4-W) . . . . . . . . . . . . . . underside of respective front seat to Left Lumbar Pump C963R (4-W) . . . . . . . . . . . . . . underside of respective front seat to Right Lumbar Pump C964L (1-R) . . . . . . . . . . . . . . . underside of respective front seat on Headrest Motor C964R (1-R) . . . . . . . . . . . . . . underside of respective front seat on Headrest Motor C965L (1-B) . . . . . . . . . . . . . . . underside of respective front seat on Headrest Motor C965R (1-B) . . . . . . . . . . . . . . underside of respective front seat on Headrest Motor C966L (3-W) . . . . . . . . . . . . . . underside of respective front seat to Headrest Potentiometer C966R (3-W) . . . . . . . . . . . . . . underside of respective front seat to Headrest Potentiometer C971L (18-W) . . . . . . . . . . . . . underside of respective front seat C971R (18-W) . . . . . . . . . . . . . underside of respective front seat on Left Seat Outstation C972L (4-W) . . . . . . . . . . . . . . underside of respective front seat to Seat Base Motor C972R (4-W) . . . . . . . . . . . . . . underside of respective front seat to Seat Base Motor C973L (3-W) . . . . . . . . . . . . . . underside of respective front seat to Seat Potentiometer Front Motor C973R (3-W) . . . . . . . . . . . . . . underside of respective front seat to Seat Potentiometer Front Motor C974L (1-R) . . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Front) Motor C974R (1-R) . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Front) Motor C975L (1-B) . . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Front) Motor C975R (1-B) . . . . . . . . . . . . . . underside of respective front seat on Seat Height (Front) Motor

View

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 . 241

246 . 241

246 . . . . . . 244 . . . . . . 244 . . . . . . 244 . . . . . . 244 . . . . . . . . . . . . . . . 243 . . . . . . . . . . . . . . . 243 . . . . . . . 245 . . . . . . . 245 . . . . . . . 245 . . . . . . . 245

. . . . . . . . . . . 248

. . . . . . . . . . 248

. . . . . . . . . . . . . 249 . . . . . . . . . . . . 249 . . . . . . . . . . . . . . . 250 . . . . . . . . . . . . . . . 250 . . . . . . . . . . . . . . . 250 . . . . . . . . . . . . . . . 250 . . . . . . . . 249 . . . . . . . . 249 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254 . . . . . . . . . . . 254 . . . . . . . . . . . . . . . 271 . . . . . . . . . . . . . . . 271 . . 252 . . 252 . . . . . . 252 . . . . . . 252 . . . . . . 252 . . . . . . 252
