Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1997–1999
- Section
- Circuit diagram › Ground distribution – circuit diagram
Ground distributionGround distribution – circuit diagram

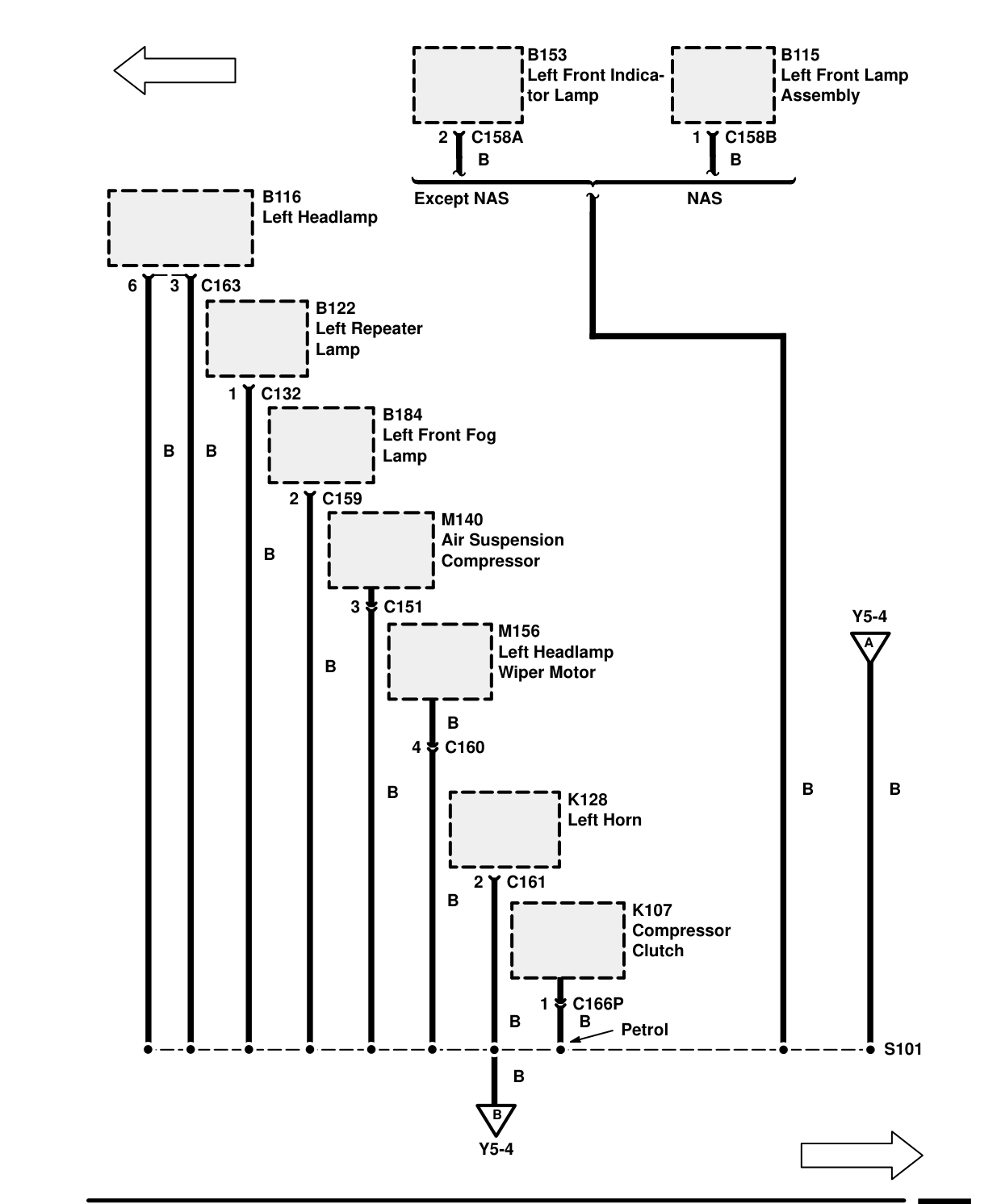

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- B115 Left Front Lamp Assembly
- B116 Left Headlamp
- B122 Left Repeater Lamp
- B153 Left Front Indicator Lamp
- B184 Left Front Fog Lamp
- K107 Compressor Clutch
- K128 Left Horn
- M140 Air Suspension Compressor
- M156 Left Headlamp Wiper Motor
