Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1997–1999
- Section
- Circuit diagram › Ground distribution – circuit diagram
Ground distributionGround distribution – circuit diagram

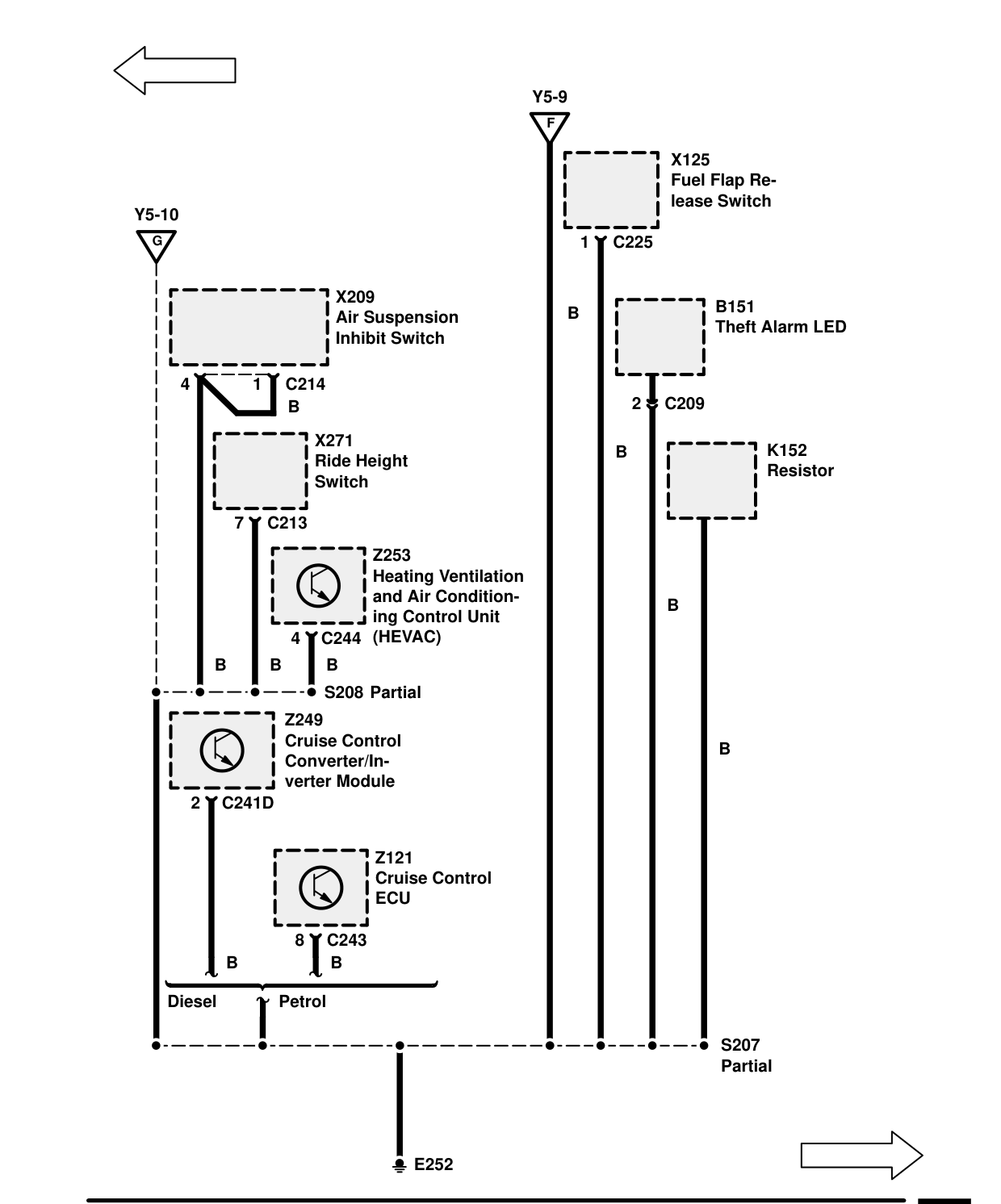

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- B151 Theft Alarm LED
- K152 Resistor
- S208 Partial
- X125 Fuel Flap Release Switch
- X209 Air Suspension Inhibit Switch
- X271 Ride Height Switch
- Z121 Cruise Control ECU
- Z249 Cruise Control Converter/Inverter Module C241D 2
