Introduction

INTRODUCTION

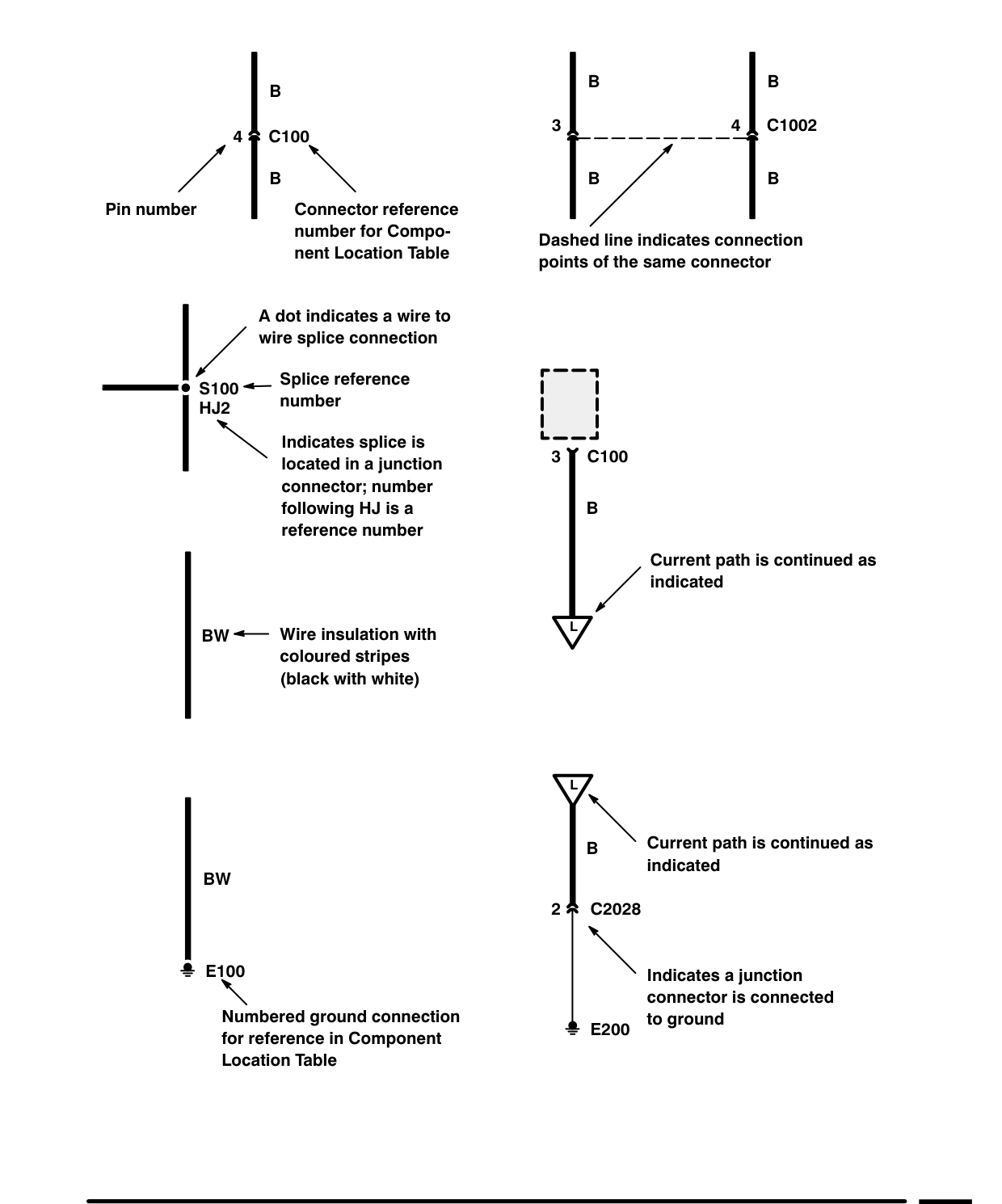

42 C100 yd B AN Pin number Connector reference number for Component Location Table

A dot indicates a wire to J wire splice connection — S100 <— SPlice reference AN Indicates splice is located in a junction connector; number following HJ is a reference number

BW <— Wire insulation with coloured stripes (black with white)

BW

2 E100 Numbered ground connection for reference in Component Location Table

4 ] C1002

Dashed line indicates connection points of the same connector

teed 3 J c100

Current path is continued as indicated

AN Current path is continued as indicated

2x C2028 AN Indicates a junction connector is connected E200 to ground
