Introduction

INTRODUCTION

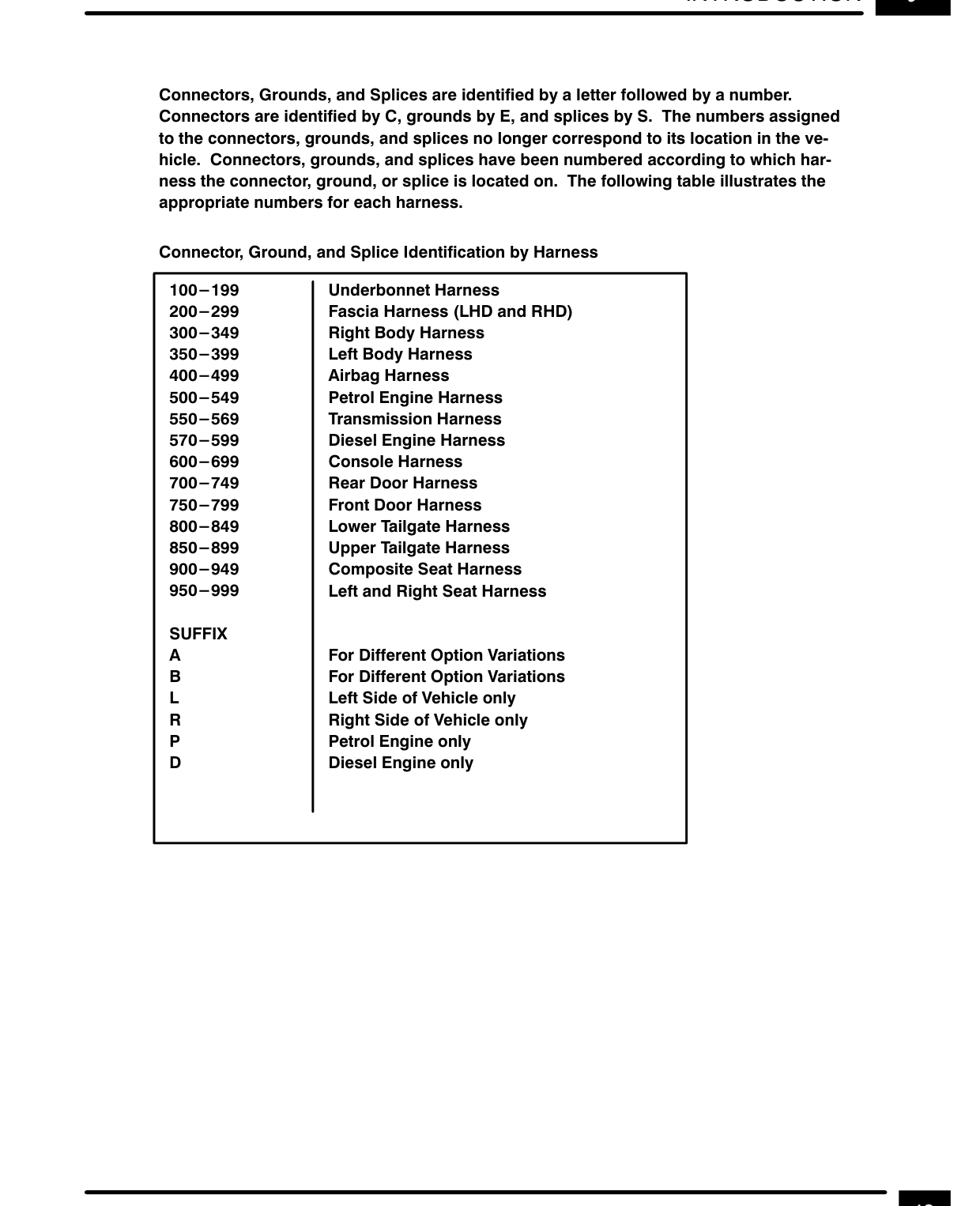

Connectors, Grounds, and Splices are identified by a letter followed by a number. Connectors are identified by C, grounds by E, and splices by S. The numbers assigned to the connectors, grounds, and splices no longer correspond to its location in the vehicle. Connectors, grounds, and splices have been numbered according to which harness the connector, ground, or splice is located on. The following table illustrates the appropriate numbers for each harness.

Connector, Ground, and Splice Identification by Harness

100-199 Underbonnet Harness

200-299 Fascia Harness (LHD and RHD) 300-349 Right Body Harness 350-399 Left Body Harness 400-499 Airbag Harness 500-549 Petrol Engine Harness 550-569 Transmission Harness

570-599 Diesel Engine Harness 600-699 Console Harness

700-749 Rear Door Harness

750-799 Front Door Harness

800-849 Lower Tailgate Harness 850-899 Upper Tailgate Harness 900-949 Composite Seat Harness 950-999 Left and Right Seat Harness

SUFFIX For Different Option Variations For Different Option Variations Left Side of Vehicle only Right Side of Vehicle only Petrol Engine only Diesel Engine only
