Air suspension – circuit diagram rev: 08/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 08/99 › Air suspension – circuit diagram rev: 08/99
Air suspensionAir suspension – circuit diagram rev: 08/99

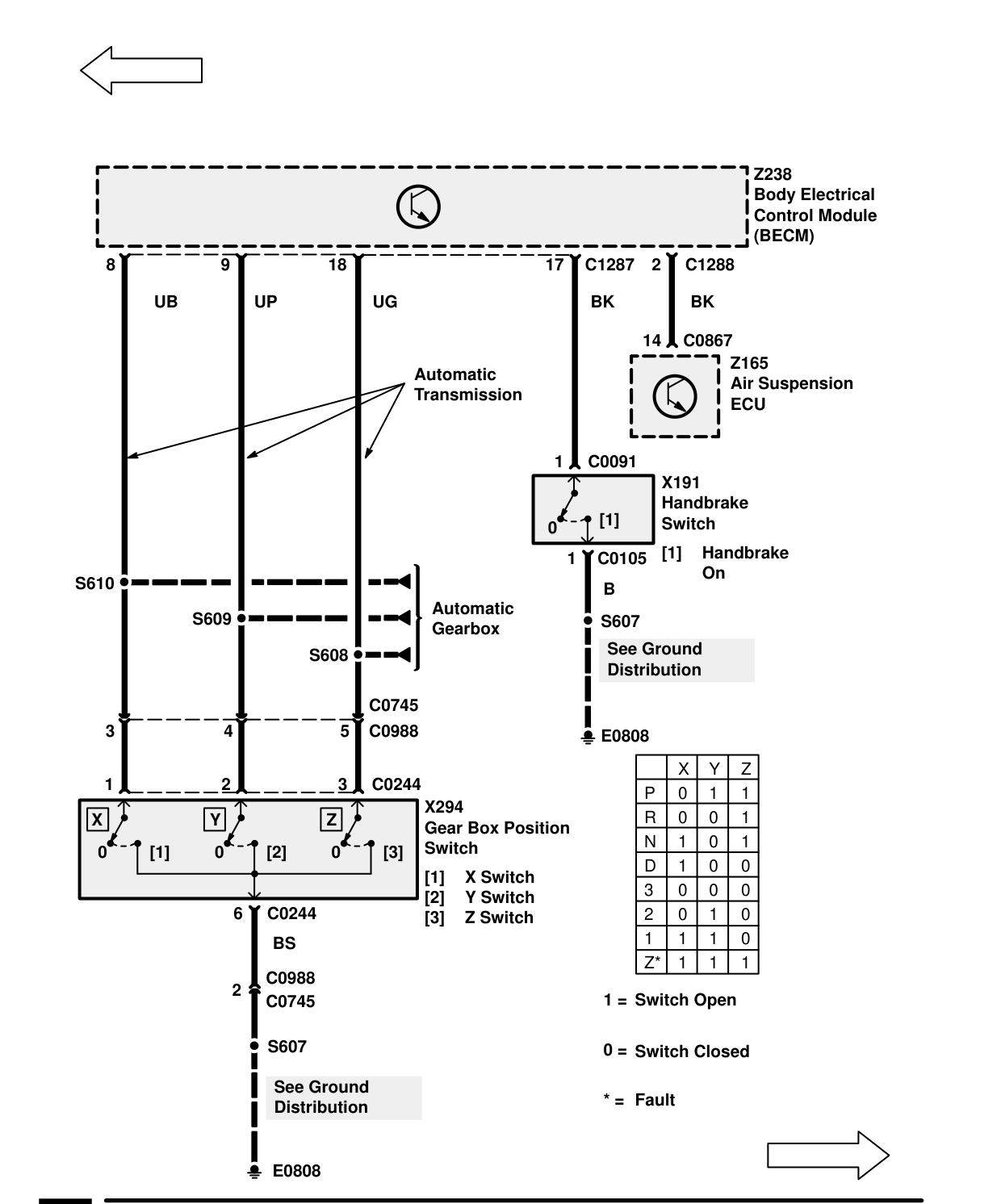

AIR SUSPENSION – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- X191 Handbrake Switch
- X294 Gear Box Position Switch
- Z165 Air Suspension ECU
- Z238 Body Electrical Control Module (BECM)
