Automatic gearboxAutomatic gearbox – circuit diagram rev: 08/99

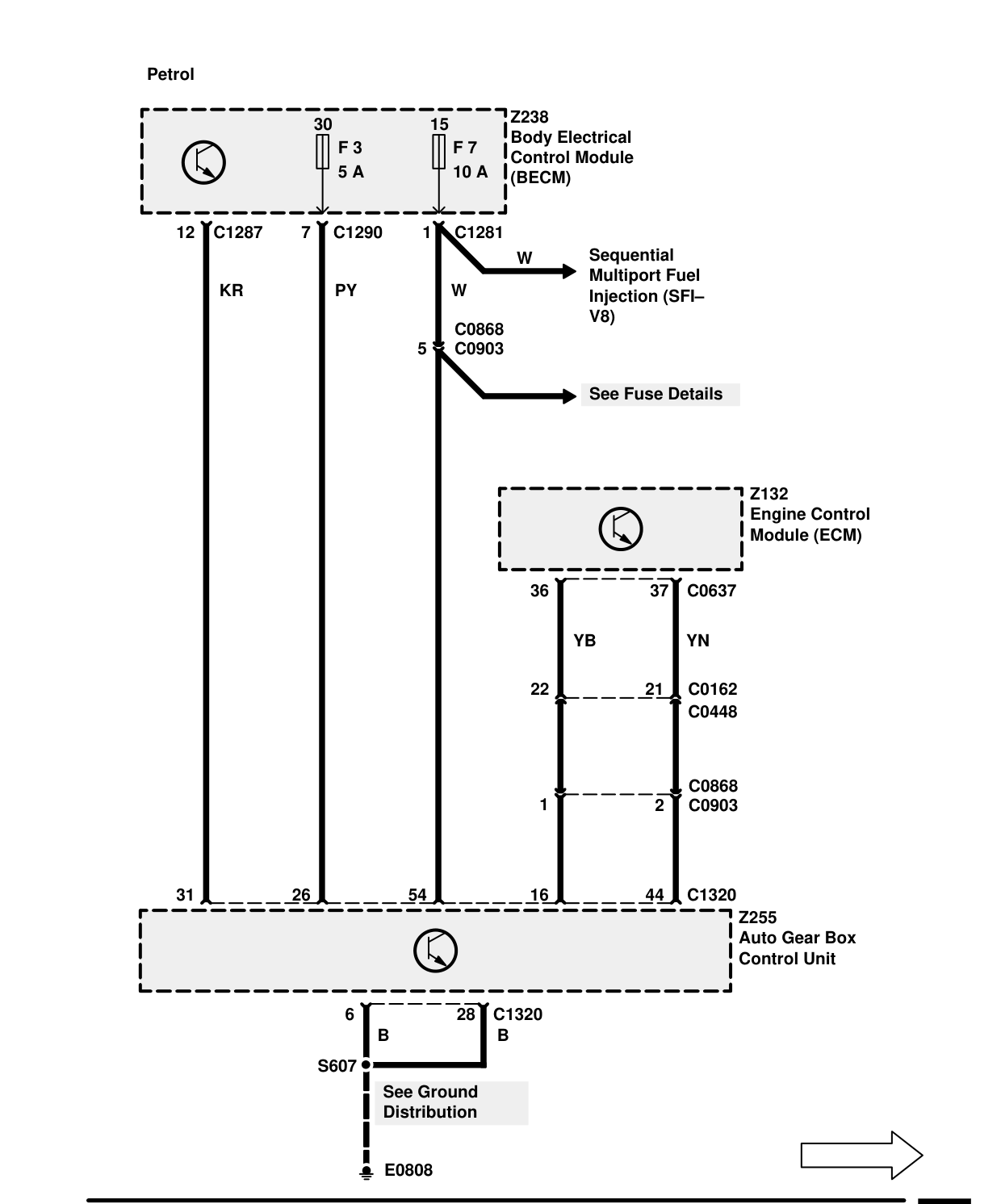

AUTOMATIC GEARBOX – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- Z132 Engine Control Module (ECM)
- Z238 Body Electrical Control Module (BECM)
- Z255 Auto Gear Box Control Unit
