Diesel – circuit diagram rev: 08/99

Make

Land Rover

Model

Range Rover P38 Electrical Troubleshooting Manual

Year

1999 on

Section

Circuit diagram rev: 08/99 › Diesel – circuit diagram rev: 08/99

DieselDiesel – circuit diagram rev: 08/99

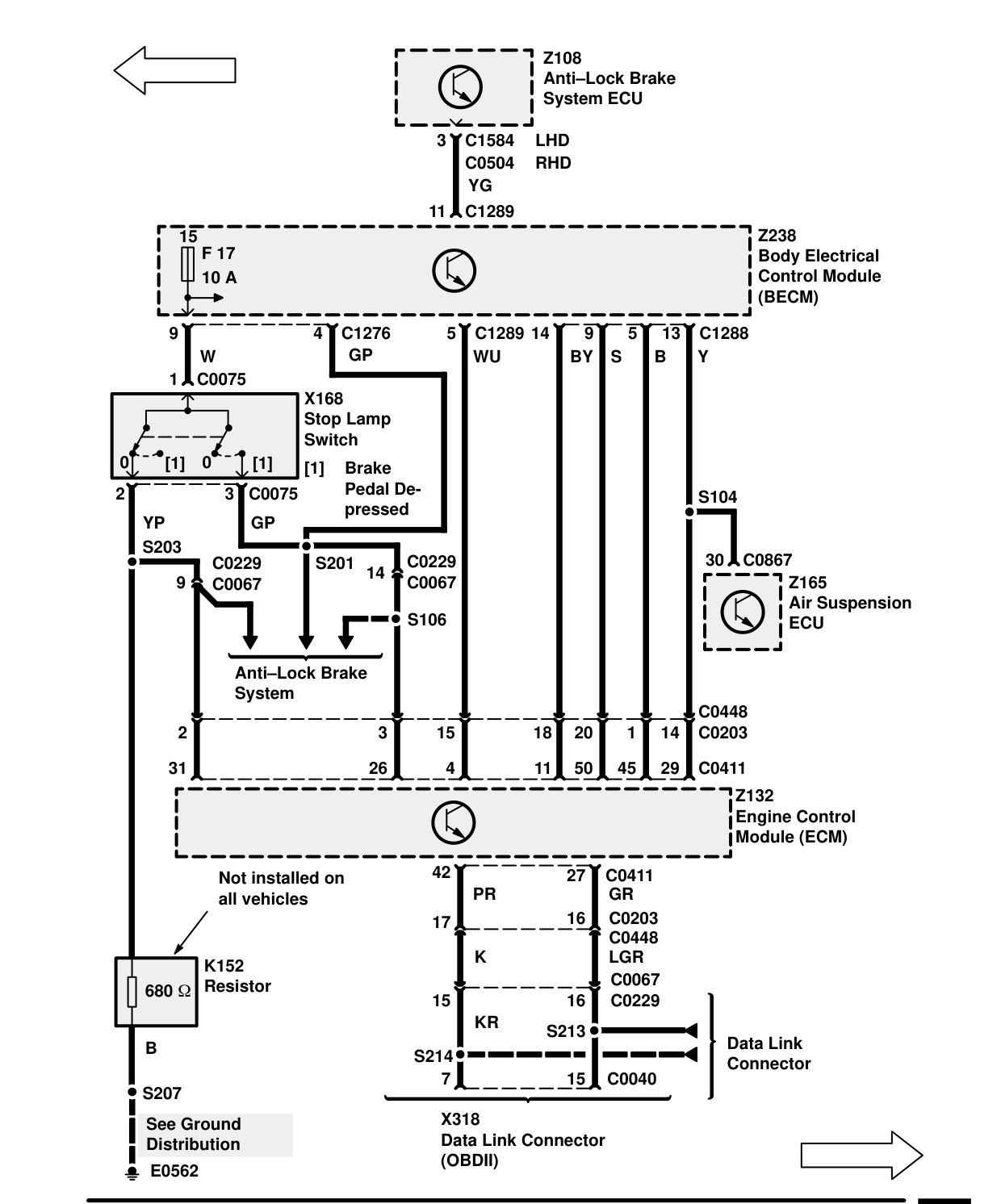

DIESEL – CIRCUIT DIAGRAM REV: 08/99

Components on this page

• K152 Resistor
• S213 Data Link Connector
• X168 Stop Lamp Switch
• X318 Data Link Connector (OBDII)
• Z108 Anti-Lock Brake System ECU
• Z132 Engine Control Module (ECM)
• Z165 Air Suspension ECU
• Z238 Body Electrical Control Module (BECM)

04 General
