Diesel – circuit diagram rev: 08/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 08/99 › Diesel – circuit diagram rev: 08/99
DieselDiesel – circuit diagram rev: 08/99

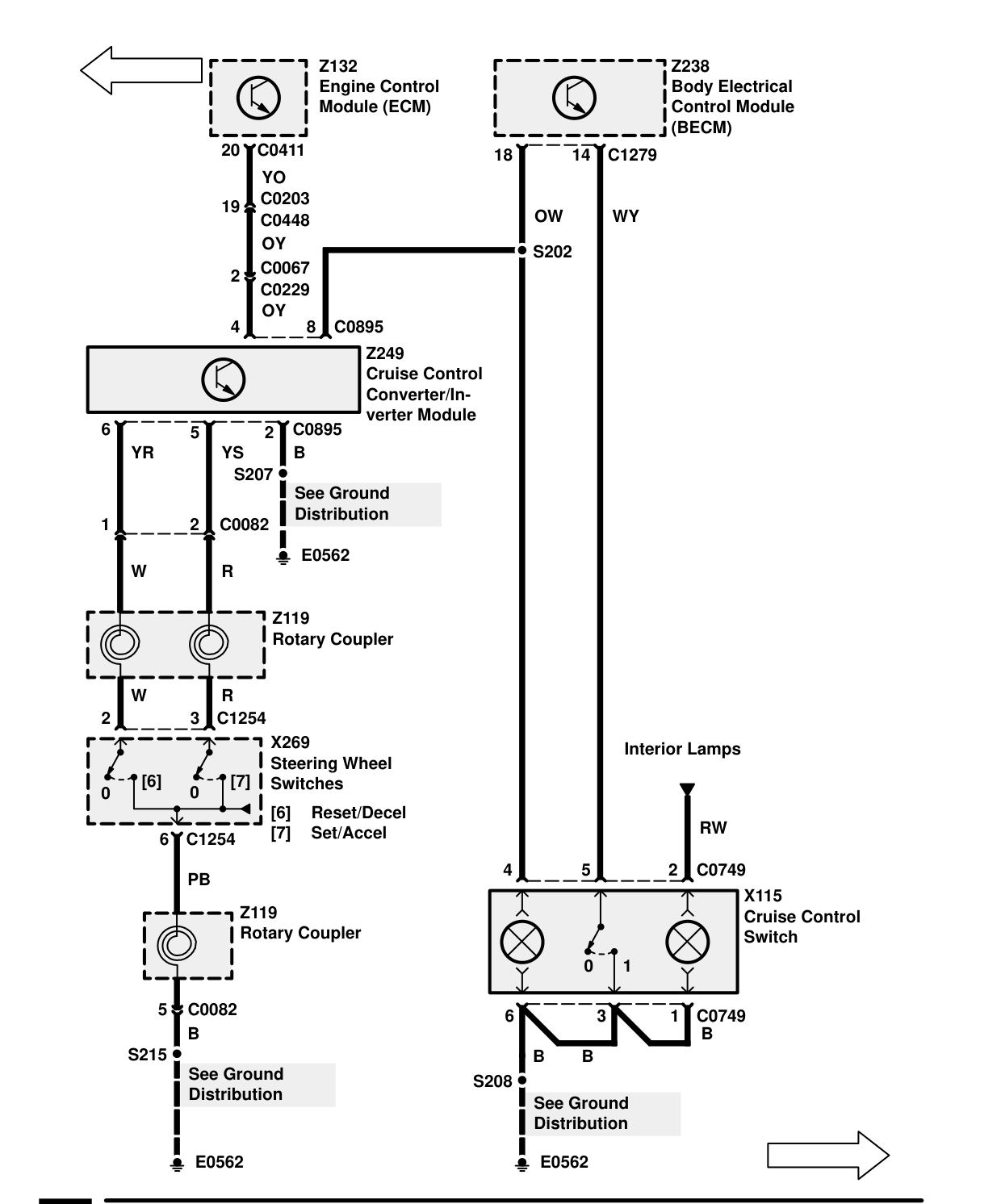

DIESEL – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- X115 Cruise Control Switch
- X269 Steering Wheel Switches
- Z119 Rotary Coupler
- Z132 Engine Control Module (ECM)
- Z238 Body Electrical Control Module (BECM)
- Z249 Cruise Control Converter/Inverter Module
